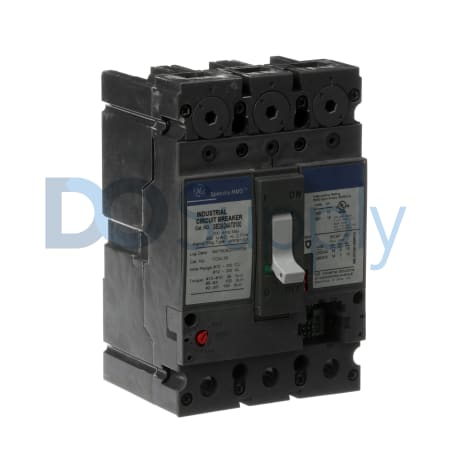

GE Fanuc Emerson Spectra SEDA24AT0100

Product image is representative; revision or series may vary. Contact us to request a specific version.

SEDA24AT0100

|
Need a Specific Revision?

The SEDA24AT0100 is a molded case circuit breaker from GE Fanuc Emerson's Spectra series, rated for 100 A and 480 V. With solid-state protection, it is designed to handle two poles in single-phase applications, offering robust circuit defense.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for SEDA24AT0100

ManufacturerGE Fanuc Emerson
Product TypeMolded Case Circuit Breaker
Product LineSpectra
Part NumberSEDA24AT0100
UPC783164211139
Voltage Rating480 V
Current Rating100 A
ProtectionSolid State
Poles2 Poles
ConnectionBolt-On
PhaseSingle Phase
AIC Rating18kA
Frequency50/60 Hz
Line / Load ConnectionTerminal connections
Trip Unit TypeInterchangeable RMS solid-state electronic trip unit
Mounting TypeBolt-On panel mounting
Terminal LugsNot included
Wire Size Range3/0 AWG
Request a Repair

The GE Fanuc Emerson SEDA24AT0100 is a high-performance molded case circuit breaker designed for reliable protection against electrical faults. This unit operates effectively with a voltage rating of 480 V and manages a current up to 100 A. The breaker is solid state, which enhances its operational efficiency and response times during faults.

Specifically designed as a two-pole circuit breaker, this model is intended for single-phase applications. It boasts an AIC rating of 18kA, ensuring it can withstand fault conditions effectively. The device operates across frequency ranges of 50 to 60 Hz and features terminal connections for both line and load, allowing for straightforward wiring setups.

One of the notable features of this circuit breaker is its interchangeable RMS solid-state electronic trip unit, which allows customization and enhanced reliability in protective functions. An efficient bolt-on panel mounting style simplifies installation within electrical panels. However, it is important to note that terminal lugs are not supplied with the breaker, so they must be procured separately. This circuit breaker is compatible with wire sizes up to 3/0 AWG, broadening its applicability in various installations.
