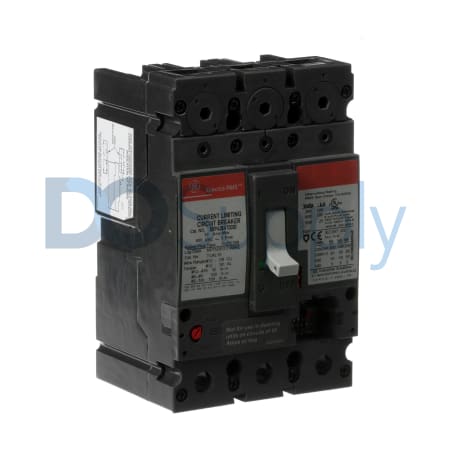

Product image is representative; revision or series may vary. Contact us to request a specific version.
SEPA36AT0030
The SEPA36AT0030 is a molded case circuit breaker crafted by GE Fanuc Emerson. It offers robust protection with a solid-state electronic trip unit and is rated for a maximum current of 30 A. Operable at a voltage of 600 VAC, it also boasts an impressive AIC rating of 100 kA at 480V, ensuring reliable performance in dynamic environments.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SEPA36AT0030
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Molded case circuit breaker |
| Product Line | Spectra |
| Part Number | SEPA36AT0030 |
| UPC | 783164227079 |
| Protection | Solid State |
| Amperage Max | 30 A |
| Voltage Rating | 600 VAC |
| AIC Rating | 100 kA at 480V |
| Connection | Bolt-On |
| Pole Configuration | 3 Poles |
| Frame Type | SE150 |
| Frequency Rating | 50/60 Hz |
| Trip Type | Solid-state electronic trip unit |
| Handle Type | Pivot/Toggle handle lever |
| Wire Size | 12 to 3/0 AWG |
| Enclosure Rating | NEMA 1 / 3R / 4 / 4X / 12 |
| Operating Temperature | –20 °C to +40 °C |
The part number SEPA36AT0030 represents a reliable molded case circuit breaker from GE Fanuc Emerson. This component utilizes solid-state technology for its protection, ensuring efficient operation and handling of electrical loads. Its maximum capacity reaches 30 A with a voltage rating of up to 600 VAC, promoting suitable performance in various applications. Remarkably, this breaker offers a 100 kA AIC rating at 480V, contributing to its safety against electrical faults.
Designed with a three-pole configuration, the SEPA36AT0030 is housed in an SE150 frame type and is adaptable for both 50 Hz and 60 Hz frequency ratings. For installation, it employs a bolt-on connection method, which simplifies the integration process with existing systems. It accommodates a wide range of wire sizes between 12 and 3/0 AWG, making it versatile for different setups.
Operationally, this unit includes a pivot/toggle handle for straightforward user interaction, which enhances accessibility during maintenance or modification. The enclosure is rated NEMA 1 / 3R / 4 / 4X / 12, indicating its capability to withstand various environmental conditions. Furthermore, it is effective across an operating temperature spectrum of –20 °C to +40 °C, ensuring functionality in diverse climate conditions. This circuit breaker, known for its solid construction and effective protection features, stands as a robust choice for numerous industrial applications.
