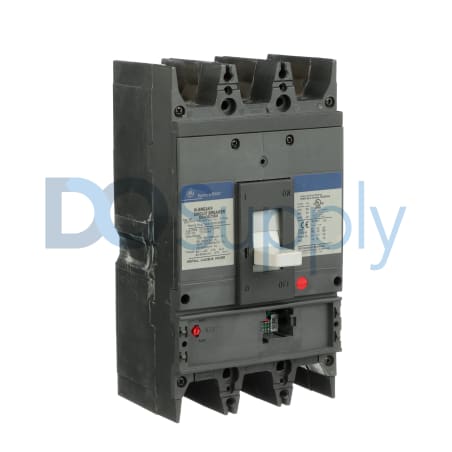

Product image is representative; revision or series may vary. Contact us to request a specific version.
SGHA26AT0600
The SGHA26AT0600 molded case circuit breaker from GE Fanuc Emerson’s Spectra series is designed for both long-time and instantaneous protection. Suitable for both 1-phase operations, this breaker can accommodate voltage ratings of 120/240 volts AC and 480/600 volts AC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SGHA26AT0600
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Spectra |
| Part Number | SGHA26AT0600 |
| UPC | 783164211313 |
| Protection Functions | Long-Time and Instantaneous (LI) |
| Number of Poles | 2 Poles |
| Connection Type | Bolt-on |
| Voltage Rating | 120/240 Volts AC and 480/600 Volts AC |
| Interrupting Rating | 65 kiloamperes at 120/240 Volts AC and 35 kiloamperes at 480/600 Volts AC |
| Operating Frequency | 50 to 60 Hertz |
| Phase Rating | 1-Phase |
| Maximum Operating Current | 600 Amperes |
| Trip Style | Interchangeable |
| Trip Unit Type | Solid-State |
At the heart of GE Fanuc Emerson's Spectra series, the SGHA26AT0600 functions as a molded case circuit breaker, equipped to handle diverse electrical applications. Rated for 1-phase use, it supports an input voltage of 120/240 volts AC alongside 480/600 volts AC. The rated maximum current for this model is 600 Amperes.
This device has two poles and utilizes a bolt-on connection type, ensuring strong reliability in installations. It incorporates a trip style that allows for interchangeability, enabling maintenance and replacement ease. The circuit breaker employs a solid-state trip unit type for efficient response to electrical anomalies.
In terms of protection capabilities, the SGHA26AT0600 features long-time and instantaneous trip functions, safeguarding the circuit effectively against overloads and short circuits. Its interrupting ratings are impressive: capable of withstanding 65 kiloamperes at 120/240 volts AC and 35 kiloamperes at 480/600 volts AC. This robustness makes it suitable for applications requiring high fault current handling. The operating frequency for this model ranges from 50 to 60 Hertz, fitting standard electrical systems.
