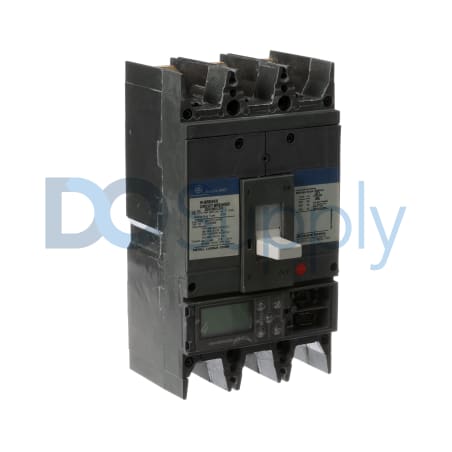

Product image is representative; revision or series may vary. Contact us to request a specific version.
SGHC3601L3XX
The SGHC3601L3XX molded case circuit breaker from GE Fanuc Emerson’s Spectra series handles a maximum voltage of 600 V while supplying a rated current capacity of 150 A. This unit is designed for 3-phase applications and operates with solid-state protection features.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SGHC3601L3XX
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Spectra |
| Part Number | SGHC3601L3XX |
| UPC | 783164391251 |
| Protection Type | Solid State Protection |
| Number of Poles | 3 Poles |
| Phase Type | 3-Phase |
| Mounting Type | Bolt-On Mount |
| Rated Voltage | 600 V |
| Rated Current | 150 A |
| Interrupt Rating at 480 V | 35 KAIC |
| Function | LSI - Long-Time, Short-Time, and Instantaneous |
| Storage Humidity | 80% (Non-Condensing) |
| Operating Humidity | 80% (Non-Condensing) |
The GE Fanuc Emerson SGHC3601L3XX is a robust molded case circuit breaker tailored for reliable performance in electrical systems. Rated at a maximum voltage of 600 V, this device supports a significant current rating of 150 A. It is constructed specifically for 3-phase configurations and includes three poles, which facilitate effective load management.
Solid-state protection technology ensures enhanced operational reliability by minimizing response times to overload conditions. Defined by interruption ratings of 35 KAIC when operating at 480 V, this circuit breaker adeptly protects circuits from potential faults. The device offers LSI functionality, which encompasses long-time, short-time, and instantaneous trip functions.
Designed for ease of installation, the SGHC3601L3XX employs a bolt-on mounting style, simplifying integration into existing systems. Environmental considerations are addressed, as this circuit breaker is rated for optimal performance within 80% humidity levels for both operation and storage, ensuring durability in various conditions. Overall, the SGHC3601L3XX reflects the advanced design and technical capabilities expected from GE Fanuc Emerson’s Spectra series.
