SKHC3608L3XX

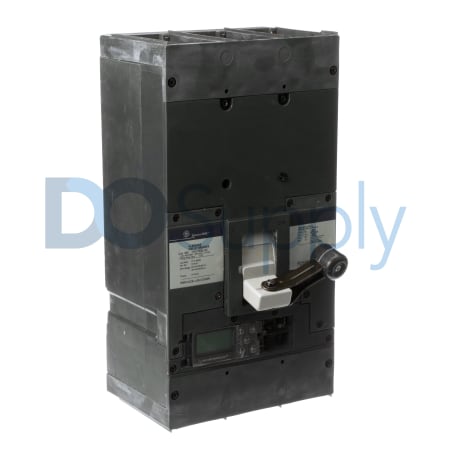

The SKHC3608L3XX from GE Fanuc Emerson is a molded case circuit breaker designed for robust electrical systems. Rated for an impressive 800 amps at a voltage level of 600 volts, this device is engineered for three-phase applications, ensuring effective current management and protection.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SKHC3608L3XX
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Spectra |
| Part Number | SKHC3608L3XX |
| GTIN | 783164304121 |
| Rated Current | 800 A |
| Rated Voltage | 600 V |
| Number of Poles | 3 Poles |
| Phase Type | 3-Phase |
| Connection Type | Bolt-On Connection |
| AIC Rating | 35 kA at 480V |
| Protection Type | Solid State Protection |
| Functions | LSI - Long-Time, Short-Time, and Instantaneous |
| Min. Frequency | 50 Hz |
| Max. Frequency | 60 Hz |
The GE Fanuc Emerson SKHC3608L3XX is a molded case circuit breaker tailored for demanding applications. It operates effectively with a rated current of 800 A and accommodates a voltage rating of 600 V, ensuring robust circuit protection in three-phase systems. With three poles, this breaker facilitates reliable electrical circuit management.
A key feature of the SKHC3608L3XX is its solid-state protection mechanism, which enhances the breaker’s reliability and operational efficiency. This unit has an AIC rating of 35 kA at 480 V, signifying its capability to handle significant short circuit conditions.
It supports functions for long-time, short-time, and instantaneous protection, making it suitable for diverse operational requirements. The frequency range for this circuit breaker spans from 50 Hz to a maximum of 60 Hz. To simplify installation, the connection type is bolt-on, allowing straightforward integration into existing systems.
