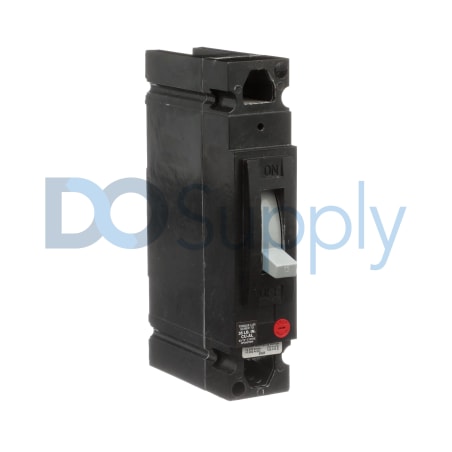

GE Fanuc Emerson Spectra TED113010

Product image is representative; revision or series may vary. Contact us to request a specific version.

TED113010

|
Need a Specific Revision?

The TED113010 is a molded case circuit breaker from the GE Fanuc Emerson Spectra series. This device is designed with a current rating of 10 A, suitable for both AC and DC applications, with a maximum voltage capacity of 480 VAC and a DC voltage rating of 125 VDC.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for TED113010

ManufacturerGE Fanuc Emerson
Product TypeMolded Case Circuit Breaker
Product LineSpectra
Part NumberTED113010
UPC783164082388
Trip StyleNon Interchangeable
Number of Poles1 Pole
Current Rating10 Amps
Minimum AC System Voltage120 VAC
Maximum AC System Voltage480 VAC
Interrupting Rating at 120 VAC14 KAIC
Interrupting Rating at 480 VAC10 KAIC
Long TimeFixed
Current MeteringNot Included
Continuous Current RatedStandard
Protective RelaysNot Included
DC Voltage Rating125 VDC
AC Voltage Rating277 VAC
Request a Repair

The GE Fanuc Emerson TED113010, part of the Spectra series, provides essential protection as a molded case circuit breaker. This device is reliable for industrial settings where a current rating of 10 Amps is needed. It is engineered for single pole operation, making it ideal for straightforward circuit protection tasks. The unit can handle a minimum AC system voltage of 120 VAC, reaching a maximum of 480 VAC, offering a versatile performance range.

With notable interrupting ratings, this circuit breaker can manage up to 14 KAIC at 120 VAC and 10 KAIC at 480 VAC, indicating its capacity to handle fault conditions effectively. The long-time trip setting is fixed, which simplifies configuration. This unit does not include current metering or protective relays, which keeps the design straightforward. It adheres to standard continuous current ratings, ensuring consistent performance during operation.

Additionally, the TED113010 is also rated for 125 VDC, allowing it to function in applications requiring direct current, alongside an AC voltage rating of 277 VAC. This versatility makes it a suitable choice in various electrical installations, meeting diverse needs efficiently.
