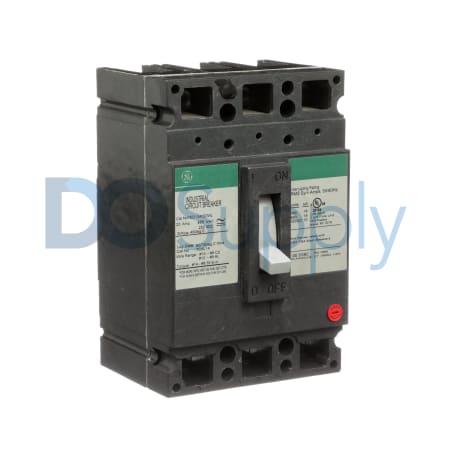

Product image is representative; revision or series may vary. Contact us to request a specific version.
TED134020
The TED134020 represents a thermal magnetic molded case circuit breaker within the Spectra series by GE Fanuc Emerson. Designed for panel mounting, this unit is rated for a current of 20 Amperes and features three poles for efficient circuit management.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TED134020
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Thermal Magnetic Molded Case Circuit Breaker |
| Product Line | Spectra |
| Part Number | TED134020 |
| UPC | 783164063813 |
| Rated Current | 20 A |
| Number of Poles | 3 Poles |
| Rated Voltage (AC) | 480 V AC |
| Rated Voltage (DC) | 250 V DC |
| Interrupting Capacity (AC) | 18 kAIC at 480 V AC |
| Interrupting Capacity (DC) | 5 kAIC at 250 V DC |
| Frequency Rating | 50/60 Hz |
| Trip Unit Type | Thermal Magnetic |
| Frame Type | E150 Frame |
| Mounting Type | Panel Mount |
| Terminal Type | Cu/Al line and load lugs (WL suffix option) |
| Reverse Feed Capability | Suitable for reverse feed |
The GE Fanuc Emerson TED134020 is a thermal magnetic molded case circuit breaker tailored for versatile applications. With a distinguished capacity of 20 Amperes across three poles, this device is engineered to ensure effective circuit protection and operational reliability. It operates on input voltages of 480 V AC or 250 V DC, addressing diverse electrical requirements.
This breaker showcases a robust interrupting capacity, rated at 18 kAIC for alternating current and 5 kAIC for direct current, making it suitable for handling fault conditions safely. The frequency range of 50/60 Hz aligns with standard electrical systems, offering versatility for a wide array of installations.
Configured with a thermal magnetic trip unit, this model ensures prompt and accurate tripping actions in the event of overload or short-circuit situations. It is built within the E150 frame for ease of installation and mounting in panel setups, providing secure and efficient electrical distribution. The terminals come with Cu/Al line and load lugs, accommodating the WL suffix options for added flexibility.
Additionally, this circuit breaker supports reverse feed capability, enhancing its applicability in various configurations. The UPC for the TED134020 is 783164063813, facilitating product identification and procurement.
