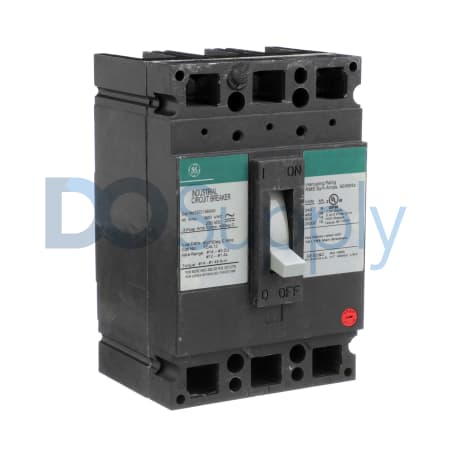

GE Fanuc Emerson Spectra TED136040

Product image is representative; revision or series may vary. Contact us to request a specific version.

TED136040

|
Need a Specific Revision?

The TED136040 molded case circuit breaker from GE Fanuc Emerson is engineered for branch circuit protection in 3-phase systems. It operates at a nominal voltage of 600 VAC and supports a rated current of 40 A, catering to various electrical needs.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for TED136040

ManufacturerGE Fanuc Emerson
Product TypeMolded Case Circuit Breaker
Product LineSpectra
Part NumberTED136040
UPC783164063479
Phase3-phase
Rated Current40 A
Nominal Voltage600 VAC
Trip UnitLong-time and Instantaneous
Poles3 Poles
Protection TypeThermal Magnetic
Mounting MethodBolt-on
Interrupt Rating at 480 V18 kA
Frequency50/60 Hz
Interrupt Rating at 600 V14 kA
ApplicationBranch Circuit Protection
Connection TypeFeed-thru
Standards ComplianceUL Listed
Request a Repair

Designed for robustness, the TED136040 circuit breaker from the Spectra series by GE Fanuc Emerson is a critical component for branch circuit protection in high-demand electrical applications. It operates effectively in 3-phase configurations with a rated current capacity of 40 Amps. The nominal voltage rating is set at 600 VAC, ensuring compatibility with a range of industrial power systems.

This circuit breaker is equipped with a thermal magnetic protection system, providing both long-time and instantaneous trip capabilities to protect connected circuits from overload and short-circuit conditions. The device comprises three poles, enhancing its functionality in multi-phase setups. It has an interrupt rating of 18 kA at 480 volts and can manage 14 kA at 600 volts, illustrating its reliability under fault conditions.

The TED136040 model is mounted using a bolt-on method, facilitating secure installation in various electrical panels. Additionally, it features feed-thru connectivity, supporting ease of integration in complex wiring layouts. This circuit breaker adheres to UL standards, highlighting its compliance with safety norms in electrical distribution systems. Operating across frequencies of 50/60 Hz, this unit is designed to withstand the demands of modern industrial environments.
