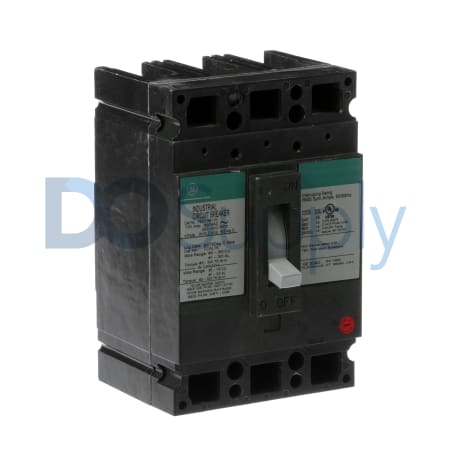

GE Fanuc Emerson Spectra TED136110

Product image is representative; revision or series may vary. Contact us to request a specific version.

TED136110

|
Need a Specific Revision?

The TED136110 is a molded case circuit breaker from GE Fanuc Emerson's Spectra series. Designed for three-phase systems, it supports an amperage rating of 110 A and features a thermal magnetic trip unit for effective protection against overloads and short circuits.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for TED136110

ManufacturerGE Fanuc Emerson
Product TypeMolded Case Circuit Breaker
Product LineSpectra
Part NumberTED136110
UPC783164063257
Poles3 Poles
Amperage Rating110 Amperes
Trip UnitThermal Magnetic
MountingBolt-On
ConnectionAluminum/Copper Lugs
Phase3 Phase
Interrupt Rating18 kA at 480 Volts AC
Protection FeaturesOverload and Short Circuit Interruption
CertificationUL 489, CSA, ANSI
IP RatingIP 20 (Open Type)
Operating Temperature-20 to 70 Degrees Celsius
Request a Repair

The GE Fanuc Emerson TED136110 is engineered as a molded case circuit breaker that caters to three-phase electrical systems. This model operates with an amperage rating of 110 A, making it suitable for various power distribution scenarios. The device incorporates a thermal magnetic trip unit, which effectively protects against overload and short circuit conditions, thus enhancing the reliability of connected circuits.

Designed for efficient heat dissipation, the breaker has a bolt-on mounting style and accommodates aluminum or copper lugs for its connections. The unit has a respectable interrupt rating of 18 kA at 480 volts AC, ensuring it can handle significant fault currents without compromising performance.

It meets multiple industry certifications, including UL 489, CSA, and ANSI, ensuring it adheres to rigorous safety and performance standards. The TED136110 possesses an IP rating of IP 20, indicating that it is open type and suitable for indoor use, protecting internal components from solid foreign objects larger than 12.5 mm. Operating conditions extend from -20 to 70 degrees Celsius, allowing for deployment in various environmental conditions.
