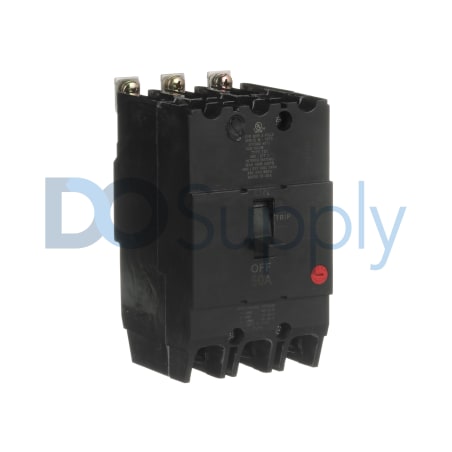

Product image is representative; revision or series may vary. Contact us to request a specific version.
TEY315
The TEY315 molded case circuit breaker from GE Fanuc Emerson is designed to perform effectively in various electrical environments. With a three-pole configuration and a rating of 15 amps, it operates within a maximum system voltage of 480Y/277 VAC, making it versatile for different applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TEY315
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Molded Case Circuit Breaker (MCCB) |
| Product Line | Spectra |
| Part Number | TEY315 |
| UPC | 783164180886 |
| Amperage Rating | 15 Amps |
| Number of Poles | 3 Poles |
| System Voltage (Max) | 480Y/277 VAC |
| Interrupting Rating (Standard Break) | 14 kA (kAIC) at 480V |
| Trip Unit Type | Thermal Magnetic (Fixed) |
| Trip Functions | LI (Long-Time and Instantaneous) |
| Mounting Style | Bolt-On |
| Wire | Size Range #14 AWG, #10 AWG (Copper or Aluminum) |
| Certifications | UL Listed, CSA Certified |
| SWD (Switching Duty) Rated | Yes |
The GE Fanuc Emerson TEY315 is a molded case circuit breaker (MCCB) designed for reliable protection in electrical circuits. This breaker is equipped with three poles and has an amperage rating of 15 amps, making it suitable for a variety of applications within specified limits. It can handle a maximum system voltage of 480Y/277 VAC, ensuring compatibility with standard electrical systems.
This unit features an interrupting rating of 14 kA (kAIC) at 480 volts, allowing it to effectively manage fault conditions safely. The trip unit is thermal magnetic with a fixed configuration, designed to provide long-time and instantaneous trip functions to ensure timely disconnection during overload or fault events.
Mounting is accomplished through a bolt-on style, facilitating straightforward installation in various enclosures. The TEY315 accommodates a wire size range from #14 AWG to #10 AWG, suitable for both copper and aluminum conductors. This flexibility aids in its integration into existing wiring setups. It is also certified UL Listed and CSA Certified, confirming its compliance with safety standards. Additionally, this device is rated for switching duty (SWD), making it capable of handling load switch applications effectively.
