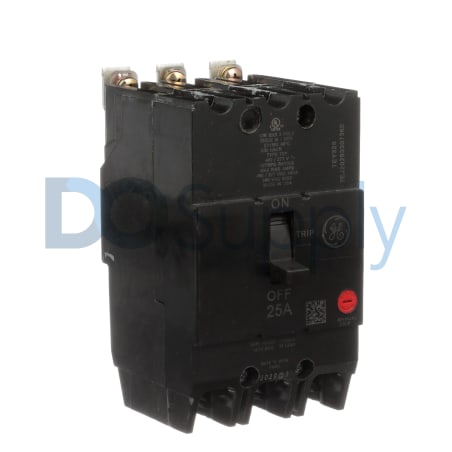

TEY325
The TEY325 from GE Fanuc Emerson is a versatile lighting panel circuit breaker suitable for various voltage applications. Featuring a rated current of 25 A, it operates at voltages of 120 VAC, 120/240 VAC, 240 VAC, and 277 VAC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TEY325
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Lighting Panel Circuit Breaker |
| Product Line | Spectra |
| Part Number | TEY325 |
| UPC | 783164403480 |
| Number of Poles | 3 Poles |
| Rated Current | 25 A |
| Protection Type | Thermal Magnetic Protection |
| Connection Type | Bolt-on Connection |
| 120 VAC to 240 VAC Interrupting Rating | 65 kAIC |
| 277 VAC Interrupting Rating | 14 kAIC |
| Operating Humidity | 80% (Non-Condensing) |
| Storage Humidity | 80% (Non-Condensing) |
| Installation Altitude | 1000 MSL |
The GE Fanuc Emerson TEY325 circuit breaker is designed for managing lighting panels. It is capable of handling multiple voltage ratings, including 120 VAC, 120/240 VAC, 240 VAC, and 277 VAC, making it suitable for various electrical configurations. Rated at 25 Amps, this breaker provides robust protection for lighting circuits.
Thermal magnetic protection is employed in this model, ensuring efficient operation under overload conditions. It features a connection type that allows for bolt-on installation, facilitating straightforward integration into existing systems.
In terms of interrupting capabilities, the TEY325 can handle 65 kAIC for voltages from 120 VAC to 240 VAC and an interrupt rating of 14 kAIC for 277 VAC, highlighting its adaptability to different currents and voltages.
This device is also designed for use in environments with an operating humidity of up to 80% without condensation, ensuring reliability under varied conditions. Storage capabilities match this humidity specification, maintaining operational integrity. The TEY325 is rated for installation at altitudes up to 1000 meters above sea level, making it versatile for use in different locations. Overall, the TEY325 stands as a reliable choice for lighting panel circuit protection.
