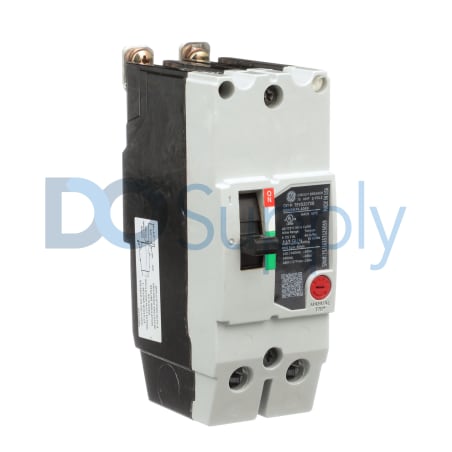

GE Fanuc Emerson Spectra TEYD2070B

Product image is representative; revision or series may vary. Contact us to request a specific version.

TEYD2070B

|
Need a Specific Revision?

The GE Fanuc Emerson TEYD2070B serves as a molded case circuit breaker capable of handling 70 amperes. It operates effectively at a voltage rating of 480 volts AC and is designed with two poles for one-phase systems.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for TEYD2070B

ManufacturerGE Fanuc Emerson
Product TypeMolded Case Circuit Breaker
Product LineSpectra
Part NumberTEYD2070B
UPC783164461657
Amperage Rating70 Amperes
Voltage Rating480 Volts AC
Poles2 Poles
Phase1 Phase
Trip TypeThermal Magnetic (Long-Time & Instantaneous)
AIC Rating25 kA @ 480 Volts
Mounting TypeBolt-On
FunctionsLI (Long-Time & Instantaneous)
ProtectionThermal Magnetic
Frame TypeTEY
ConnectionStandard Lug Configuration
Wire Size4-10 AWG
HACR RatedYes
Request a Repair

The TEYD2070B from GE Fanuc Emerson is categorized as a molded case circuit breaker within the Spectra series. It is rated for a maximum of 70 amperes and is operational at 480 volts AC. This device is structured with two poles, suitable for single-phase applications. Engineered for robust protection, the circuit breaker features a thermal magnetic trip type that offers both long-time and instantaneous characteristics.

With an AIC rating of 25 kA at 480 volts, the TEYD2070B is capable of withstanding significant short-circuit conditions. It mounts via a bolt-on method, ensuring secure installation in various electrical panels. Designed with a standard lug connection type, it can accommodate wire sizes ranging from 4 to 10 AWG. The unit is HACR rated, adding to its versatility for heating, air conditioning, and refrigeration applications. This circuit breaker's frame is identified as a TEY type, providing reliable performance in demanding environments.
