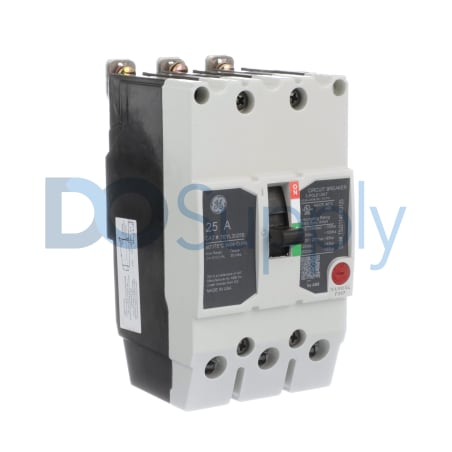

TEYL3025B
GE Fanuc Emerson's TEYL3025B is a circuit breaker specifically designed for use in lighting panels from the Spectra series. With a 25 A rated current, this device operates efficiently across multiple voltage types, including 120/240 VAC and 250 Vdc.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TEYL3025B
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Lighting Panel Circuit Breakers |
| Product Line | Spectra |
| Part Number | TEYL3025B |
| UPC | 783164462531 |
| Number of Poles | 3 Poles |
| Rated Current | 25 A |
| Frame Type | TEYL Frame |
| Continuous Current Rated | Standard |
| Suitable for Reverse Feed | Yes |
| Rated Voltage | 120/240 VAC, 240 VAC, 250 Vdc, 277 VAC, 480/277 VAC |
| Instantaneous | Fixed |
| 120/240 VAC Interrupting Rating | 100 KAIC |
| 125 Vdc Interrupting Rating | 42 KAIC |
| 250 Vdc Interrupting Rating | 35 KAIC |
| 480/277 VAC Interrupting Rating | 65 KAIC |
The TEYL3025B circuit breaker from GE Fanuc Emerson is crafted for lighting panel applications within the Spectra series. This unit is configured with three poles and has a rated current of 25 Amps. It is constructed using the TEYL frame type, ensuring reliable performance under specified conditions. It operates effectively at voltages such as 120/240 VAC, 240 VAC, and 480/277 VAC, as well as at 250 Vdc and 277 VAC.
The continuous current rating remains standard, making this breaker ideal for consistent electrical flow. Its design supports reverse feed, allowing for flexibility in installation configurations. The instantaneous trip setting is fixed to enhance operational predictability. In terms of interrupting capacity, the TEYL3025B holds a significant rating of 100 KAIC at 120/240 VAC applications. For direct current, it maintains interrupting ratings of 42 KAIC at 125 Vdc and 35 KAIC at 250 Vdc. At 480/277 VAC, the interrupting rating is recorded at 65 KAIC. This unit is engineered as a robust option for ensuring safety and functionality in electrical circuits.
