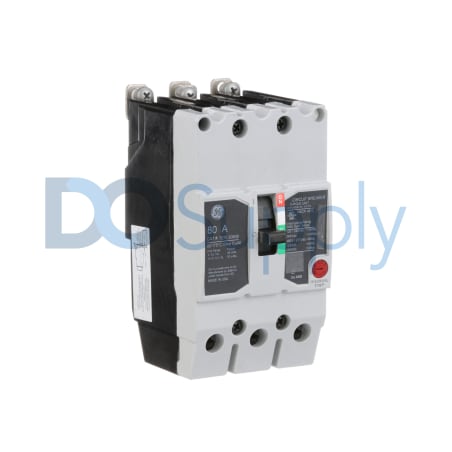

TEYL3080B
The TEYL3080B model from GE Fanuc Emerson is a robust circuit breaker designed for reliable overcurrent protection. With a current rating of 80A, it operates up to a voltage of 480Y/277 VAC and supports both 50/60 Hz frequency ratings, ensuring its effectiveness in various industrial applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TEYL3080B
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Circuit Breaker |
| Product Line | Spectra |
| Part Number | TEYL3080B |
| UPC | 783164462616 |
| Poles | 3 Poles |
| Current Rating | 80A |
| Voltage Rating | 480Y/277 VAC |
| Frequency Rating | 50/60 Hz |
| Interrupting Capacity (480/277 VAC) | 65 kA |
| Interrupting Capacity (240 VAC) | 100 kA |
| Trip Type | Thermal-magnetic |
| Connection Type | Load lug |
| Wire Size Range | 4 to 2/0 AWG |
| Mounting Style | Bolt-on mounting base |
| Actuator Type | Toggle / handle |
| Material / Housing | Durable thermoplastic casing |
| Operating Temperature | 40 °C |
The GE Fanuc Emerson TEYL3080B is designed to serve as a circuit breaker, featuring a total of three poles. Capable of handling a current rating of 80A, it operates effectively within a voltage range of 480Y/277 VAC. This unit operates under frequency ratings of 50/60 Hz and employs a thermal-magnetic trip type for dependable protection against short circuits and overloads.
In terms of interrupting capacity, the TEYL3080B can withstand electrical faults with a 65 kA rating at 480/277 VAC and 100 kA at 240 VAC, making it suitable for demanding environments. For connections, it uses load lugs that are compatible with wire sizes from 4 to 2/0 AWG, which enhances adaptability across various installation scenarios.
The installation process is straightforward due to its bolt-on mounting base, allowing for firm attachment in panels. Users can easily activate or reset the circuit breaker with its toggle/handle actuator design. Constructed with durable thermoplastic material, the housing is designed to withstand typical industrial conditions, while the operating temperature remains optimal up to 40 °C. The TEYL3080B circuit breaker combines these specifications to deliver reliable performance in a variety of applications.
