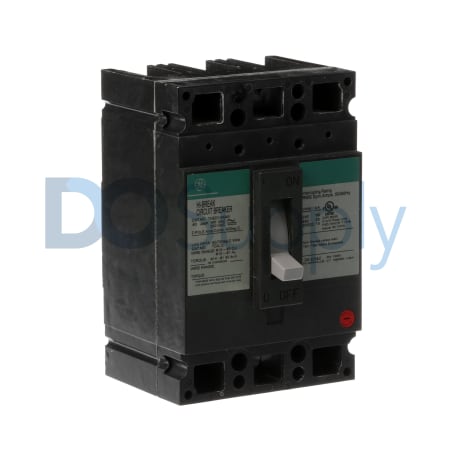

GE Fanuc Emerson Spectra THED124040

Product image is representative; revision or series may vary. Contact us to request a specific version.

THED124040

|
Need a Specific Revision?

The GE Fanuc Emerson THED124040 is a molded case circuit breaker engineered for industrial applications. With a rated current of 40 Amps and designed for single-phase systems, this breaker provides reliable protection for electrical circuits operating at 480 Volts AC.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for THED124040

ManufacturerGE Fanuc Emerson
Product TypeMolded Case Circuit Breaker
Product LineSpectra
Part NumberTHED124040
UPC783164231274
Rated Frequency60 Hertz
Number of Poles2 Poles
Rated Current40 Amps
Voltage Rating480 Volts AC
Interrupting Rating25 kA at 480V AC
Electrical Phase1 Phase
Trip MechanismThermal-Magnetic Trip Unit
Electrical ConnectionFeed-Thru Style
Physical MountingBolt-On Mounting
Connection LugsStandard Lug Configuration
Terminal Conductor Rating75°C Copper/Aluminum
Request a Repair

The THED124040 model from GE Fanuc Emerson is a specifically designed molded case circuit breaker for robust electrical management in industrial environments. This breaker operates effectively at a frequency of 60 Hertz and is suitable for single-phase electrical systems. Designed to handle a rated current of 40 Amperes, it excels in applications requiring reliable circuit protection at a voltage rating of 480 Volts AC.

The interrupting capacity of the THED124040 is rated at 25 kA at 480 Volts AC, providing excellent fault protection capabilities. It is equipped with a thermal-magnetic trip unit, which ensures it responds accurately to overload and short-circuit conditions, safeguarding your electrical infrastructure.

Installation is streamlined thanks to its bolt-on mounting design, allowing for secure and stable placement within any panel. Additionally, it utilizes a feed-thru electrical connection style, giving it flexibility in wiring configurations. The terminal lugs are designed according to standard configurations and are rated for 75°C, making the breaker compatible with both copper and aluminum conductors. Overall, the THED124040 ensures efficiency and safety in managing electrical loads.
