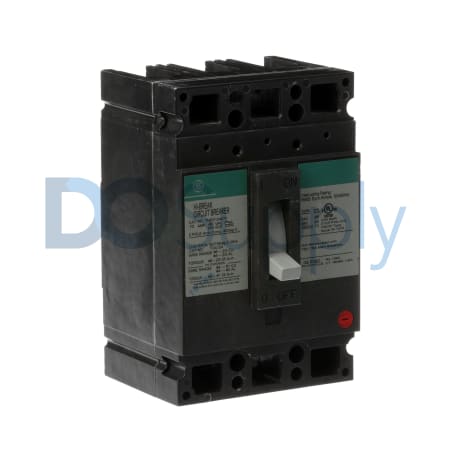

GE Fanuc Emerson Spectra THED124070

Product image is representative; revision or series may vary. Contact us to request a specific version.

THED124070

|
Need a Specific Revision?

The THED124070 is a molded case circuit breaker designed by GE Fanuc Emerson within the Spectra series. Rated for a maximum amperage of 70 amps, this 2-pole breaker is ideal for single-phase applications and offers effective electrical protection.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for THED124070

ManufacturerGE Fanuc Emerson
Product TypeMolded Case Circuit Breaker
Product LineSpectra
Part NumberTHED124070
UPC783164231311
Maximum Amperage Rating70 Amp
Number of Poles2 Poles
Connection TypeBolt On
AIC Ratings25 kA at 480 VAC
AC Voltage Rating480 VAC
Protection ClassThermal Magnetic
FunctionsLI Long Time and Instantaneous
Phase Type1-Phase
Frame TypeTED
Request a Repair

Describing the GE Fanuc Emerson THED124070, this molded case circuit breaker from the Spectra line showcases durable construction. It accommodates a maximum current of 70 Amps and is characterized by its two-pole design, suitable for 1-phase power systems. With an AC voltage rating of 480 VAC, the circuit breaker is adept at managing substantial loads.

Its thermal magnetic protection class encompasses both LI long-time and instantaneous trip features, providing a safety net against prolonged overloads and brief surges. The breaker is designed for bolt-on connections, which simplifies the integration into existing panels.

This unit boasts an AIC rating of 25 kA at 480 VAC, reflecting its capability to interrupt significant fault currents effectively. The TED frame type enhances its structural robustness, making it suitable for a range of applications where reliability and performance are paramount.
