GE Fanuc Emerson Spectra THED124090

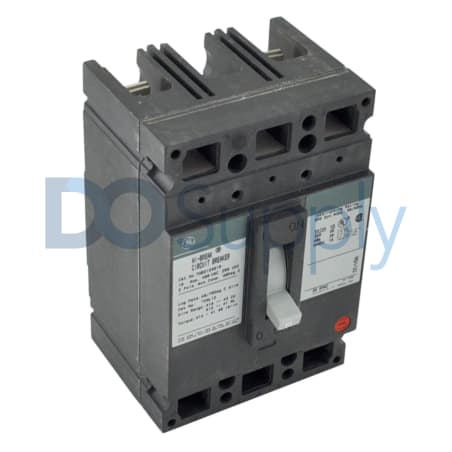

Product image is representative; revision or series may vary. Contact us to request a specific version.

THED124090

|
Need a Specific Revision?

The THED124090 circuit breaker from the Spectra series by GE Fanuc Emerson is a molded case type designed for efficient circuit protection. It supports a continuous current rating of 90 Amperes and is rated for 480V AC, ideal for single-phase applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for THED124090

ManufacturerGE Fanuc Emerson
Product TypeMolded Case Circuit Breaker
Product LineSpectra
Part NumberTHED124090
Termination TypeLug Terminals
Mounting StylePanel/Switchboard Mount
Enclosure TypeMolded Insulating Case
Continuous Current Rating90 Amps
Rated Voltage480V AC
Poles2 Poles
Phase Type1-Phase
Interrupting Capacity (AIC)25 kA at 480V
Connection MethodBolt-On
Trip FunctionsLI (Long & Instantaneous)
Operating TemperatureUp to 40°C
Request a Repair

The GE Fanuc Emerson THED124090 is a molded case circuit breaker specifically engineered for effective protection in electrical applications. It maintains a continuous current rating of 90 Amps, making it suitable for use in various scenarios demanding robust performance. Featuring an operational voltage of 480V AC, it serves well in single-phase conditions. The unit comprises two poles ideal for diverse circuit configurations.

Termination is performed via lug terminals, ensuring secure connections. The device is designed for panel or switchboard mounting, providing versatility in installation. Its enclosure is made of a molded insulating case, improving both durability and insulation against environmental factors.

In terms of interruption capacity, the device can handle up to 25 kA at 480 volts, which contributes to safeguarding circuits against overloads and short-circuits. For added functionality, the THED124090 incorporates LI trip functions which allow for both long-time and instantaneous responses to fault conditions. Additionally, this breaker operates effectively at ambient temperatures reaching up to 40°C.
