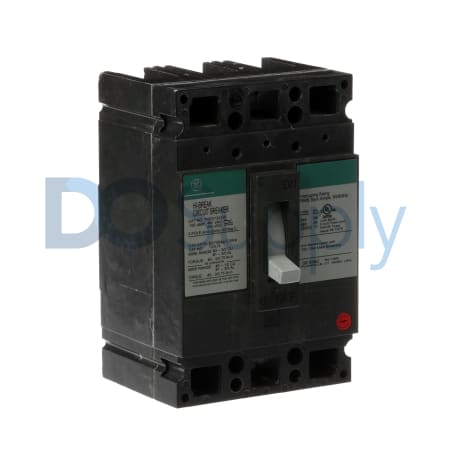

GE Fanuc Emerson Spectra THED124100

Product image is representative; revision or series may vary. Contact us to request a specific version.

THED124100

|
Need a Specific Revision?

The THED124100 from GE Fanuc Emerson's Spectra series is a thermal magnetic molded case circuit breaker designed for efficient current management. This model includes two poles, has a rated current of 100 A, and features an E150 frame type.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for THED124100

ManufacturerGE Fanuc Emerson
Product TypeThermal Magnetic Molded Case Circuit Breaker
Product LineSpectra
Part NumberTHED124100
Weight3.50 lbs (1.59 kg)
UPC783164231342
Number of Poles2 Poles
Rated Current100 A
Frame TypeE150 Frame
Trip FunctionLI
Protection TypeThermal Magnetic
AIC Rating25 kA at 480 V
FunctionsLI - Long-Time and Instantaneous
Connection TypeFeed-Thru
Operating Humidity80% (non-Condensing)
Installation Altitude1000 MSL
Request a Repair

Part number THED124100 is a molded case circuit breaker offered by GE Fanuc Emerson in its Spectra series. This device is specifically designed to handle a rated current of 100 amperes and comes with two poles for electrical circuit protection. The unit's frame type is identified as E150, providing a solid foundation for its functionality.

This thermal magnetic circuit breaker features a trip function classified as LI, which encompasses both long-time and instantaneous operations. Protected against overcurrent conditions, it offers an AIC rating of 25 kA at a voltage of 480 V, ensuring that it is capable of effectively interrupting fault conditions. The feed-thru connection type is ideal for maintaining consistent power distribution while simplifying wiring.

The THED124100 is rated for operation in environments with humidity levels of up to 80% and is suitable for non-condensing conditions. Additionally, this unit is designed for installation at altitudes reaching 1000 meters above sea level, further enhancing its versatility in varying geographic locations.
