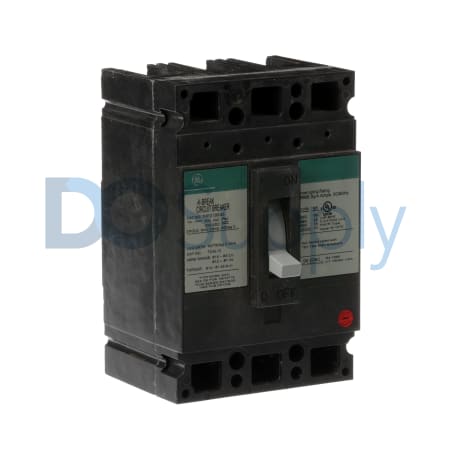

Product image is representative; revision or series may vary. Contact us to request a specific version.
THED136045
The THED136045 from GE Fanuc Emerson is a sophisticated molded case circuit breaker ideal for robust electrical system management. Designed for 3-phase applications, this circuit breaker can handle a voltage rating of up to 600V and features a thermal magnetic trip mechanism for reliable performance.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for THED136045
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Spectra |
| Part Number | THED136045 |
| UPC | 783164062946 |
| Phase | 3 Phase |
| Voltage Rating | 600V |
| Connection Type | Bolt-On/Feed-Thru |
| Circuit Breaker Type | Thermal Magnetic |
| Amperage | 45A |
| Interrupting Rating | 25 kA at 480V |
| Trip Type | Long-Time and Instantaneous |
| Poles | 3 Poles |
| Standards | UL, CSA |
| Protection | Overload and Short Circuit |
| Mounting Type | Panel/Bolt-On |
| Terminal Connection | Load Side Lugs |
The GE Fanuc Emerson THED136045 molded case circuit breaker is engineered for high performance in demanding commercial and industrial applications. This device is specifically designed for 3-phase power systems and accommodates voltages reaching a maximum of 600V. Featuring a thermal magnetic trip mechanism ensures dependable circuit protection and timely disconnection in case of overload or short circuit conditions.
This circuit breaker has a maximum current handling capacity of 45 amperes, making it suitable for various electrical setups. An interrupting rating of 25 kA at 480V signifies its resilience in managing fault conditions. The trip type of this breaker incorporates both long-time and instantaneous protections for versatile operational requirements.
Built for easy integration, the THED136045 utilizes a bolt-on/feed-thru connection method and supports panel mounting. Its design accommodates load side lugs for secure connections, ensuring a solid and stable installation. The breaker adheres to critical industry standards, including UL and CSA certifications, emphasizing safety and reliability throughout its operational lifespan. Overall, the THED136045 is a reliable and efficient choice for effective circuit protection across various applications.
