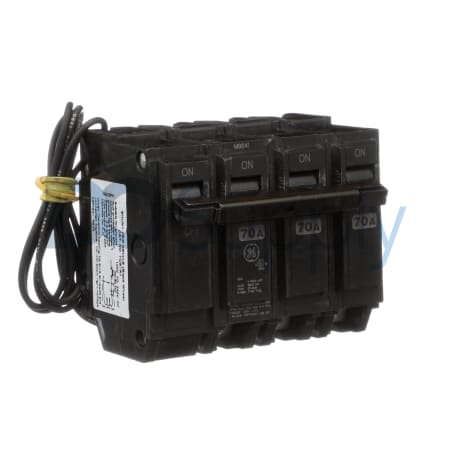

Product image is representative; revision or series may vary. Contact us to request a specific version.
THQL32070ST1
The THQL32070ST1, a product of GE Fanuc Emerson's Spectra range, functions as a miniature circuit breaker designed for effective electrical management. With a 70 ampere capacity and a dual voltage rating of 120/240 volts AC, this unit is efficient for diverse applications requiring three-phase power.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for THQL32070ST1
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Miniature Circuit Breaker |
| Product Line | Spectra |
| Part Number | THQL32070ST1 |
| UPC | 783164074109 |
| Amperage Rating | 70 Amperes |
| Voltage Rating | 120/240 Volts AC |
| Poles | 3 Poles |
| Phase | 3 Phase |
| Interrupting Rating | 10 kAIC @ 240V AC |
| Trip Functions | Long Time & Instantaneous |
| Protection | Thermal Magnetic |
| Connection Type | Plug-In (Load Side Lug) |
| Certification | UL Listed |
| Accessory | Shunt Trip (120 Volts AC) |
| Operating Temperature | -10 to 60 degrees Celsius |
The GE Fanuc Emerson THQL32070ST1 is a reliable miniature circuit breaker developed to safeguard electrical systems. Operating at 70 amperes and suitable for 120 or 240 volts AC usage, it accommodates three-pole and three-phase configurations, making it versatile for numerous electrical setups. This model is particularly effective in applications requiring a robust interrupting rating of 10 kAIC at 240 volts AC.
Equipped with a combination of long-time and instantaneous trip functions, the THQL32070ST1 offers added protection against overloads and short circuits. The thermal magnetic design enhances safety by providing comprehensive circuit protection under various conditions. Installation is simplified with a plug-in connection on the load side, ensuring a swift setup process.
Additionally, the circuit breaker complies with UL standards, affirming its reliability and safety in operational use. An optional shunt trip accessory, compatible with 120 volts AC, increases its adaptability for specific applications. The operating temperature range of the THQL32070ST1 spans from -10 to 60 degrees Celsius, allowing it to function effectively in a wide spectrum of environmental conditions.
