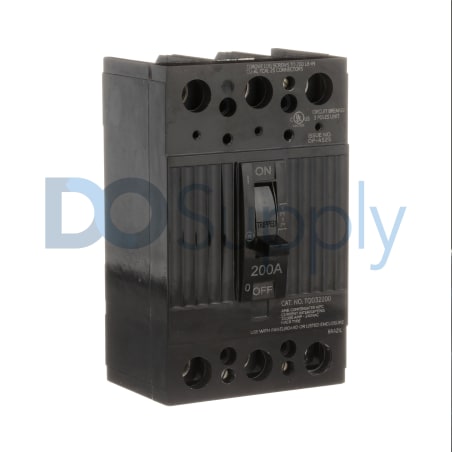

Product image is representative; revision or series may vary. Contact us to request a specific version.
TQD32200WL
The TQD32200WL circuit breaker from GE Fanuc Emerson is designed for three-phase applications. With a current capacity of 200 Amps, this model operates effectively at 240 VAC and features a thermal magnetic protection mechanism.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TQD32200WL
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Circuit breaker |
| Product Line | Spectra |
| Part Number | TQD32200WL |
| UPC | 783164087994 |
| Current Rating | 200 Amps |
| Poles | 3 poles |
| Voltage Rating | 240 VAC |
| Phase | 3 phase |
| Interrupting Rating at 240V | 10 k AIC |
| Protection | Thermal magnetic |
| Functions | LI |
| HACR Rated | Yes |
| Interchangeable Trip | No |
| Suitable for Reverse Feed | Yes |
The GE Fanuc Emerson TQD32200WL circuit breaker functions as a crucial component in three-phase electrical systems. Its operating current is rated at 200 Amps, making it an ideal option for substantial load applications while using a voltage rating of 240 VAC. The circuitry is designed with three poles, contributing to its capability to manage multi-phase systems efficiently.
Equipped with thermal magnetic protection, this breaker offers reliable safeguards against overload and short circuit scenarios. It possesses a noteworthy interrupting capacity of up to 10 k AIC at 240 volts, ensuring it can handle significant fault conditions without failure. The TQD32200WL also comes HACR rated, confirming its suitability for handling heating, air conditioning, and refrigeration load applications.
Notably, the unit does not support interchangeable trips, which should be considered during installation and maintenance planning. On the other hand, it is designed to work effectively in reverse feed configurations, expanding its versatility in various installations. Overall, the TQD32200WL circuit breaker is engineered for robust performance in demanding settings, offering a balance of reliability and adaptability suitable for extensive electrical systems.
