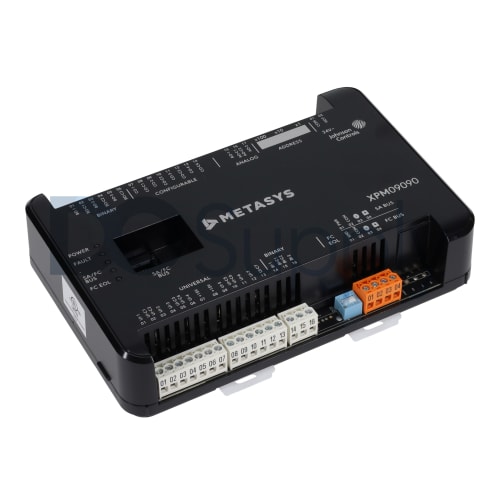

Johnson Controls M4 Controllers M4-XPM09090-0

Product image is representative; revision or series may vary. Contact us to request a specific version.

M4-XPM09090-0

|
Need a Specific Revision?

The M4-XPM09090-0 is an expansion module from Johnson Controls' M4 Controllers series. It provides multiple inputs and outputs, facilitating integration into control systems that utilize the BACnet MS/TP communication protocol.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for M4-XPM09090-0

ManufacturerJohnson Controls
Product LineM4 Controllers
Part NumberM4-XPM09090-0
Weight2.00 lbs (0.91 kg)
ProductExpansion Module
Number of Binary Inputs (BI)2
Number of Binary Outputs (BO)3
Number of Configurable Outputs (CO)4
Number of Analog Outputs (AO)2
Communication ProtocolBACnet MS/TP
Power Supply Voltage15 VDC
Power Supply Current100 mA
Analog Input (Voltage Mode)0–10 VDC
Analog Input (Current Mode)4-20 mA
Binary Input ModesDry Contact Maintained Mode, Pulse Counter/Accumulator Mode
Binary Output Type24 VAC Triac (External Power Source)
Analog Output TypesVoltage Mode (0–10 VDC), Current Mode (4–20 mA)
Configurable Output TypesAnalog Output Voltage Mode (0–10 VDC), Binary Output (24 VAC Triac)
Number of Universal Inputs (UI)7
Request a Repair

Johnson Controls' M4-XPM09090-0 acts as an expansion module within the M4 Controllers line. This unit accommodates two binary inputs, enabling operational versatility. It includes three binary outputs for effective command signaling and four configurable outputs that can be tailored to specific operational requirements.

The device also supports two analog outputs. These outputs can function in different modes: voltage mode ranges from 0 to 10 VDC, while current mode operates between 4 and 20 mA. Users can select between these functionalities depending on their application needs.

In terms of universal input capabilities, the module offers seven inputs. The binary input settings available include dry contact maintained mode and pulse counter or accumulator modes, allowing for adaptable input handling. For output functionality, the binary output type is defined as 24 VAC Triac with the necessity for an external power source.

To ensure proper operation, the module requires a power supply voltage of 15 VDC and a current supply of 100 mA. Communication is facilitated via the BACnet MS/TP protocol, making integration into existing BACnet networks feasible. The M4-XPM09090-0 expansion module provides a comprehensive array of input and output options, enhancing the performance and flexibility of control systems.
