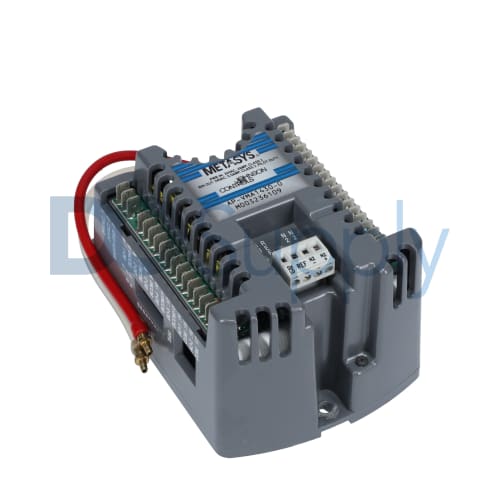

Johnson Controls Metasys AS AP-VMA1430-0

Product image is representative; revision or series may vary. Contact us to request a specific version.

AP-VMA1430-0

|
Need a Specific Revision?

The Johnson Controls AP-VMA1430-0 is a VMA or VAV Modular Assembly unit designed for efficient HVAC system control in various applications. Its power consumption rating is 3 VA maximum (Note: the relay, actuator, and valve requirements are not included.), and it offers reliable performance while consuming minimal power. The actuator operates within an ambient temperature range of 0 to 50°C (32 to 122°F). For storage, it can withstand ambient temperatures from -40 to 70°C (-40 to 158°F).

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for AP-VMA1430-0

ManufacturerJohnson Controls
Product LineMetasys AS
Part NumberAP-VMA1430-0
Weight1.19 lbs (0.54 kg)
TypeVariable Air Volume Modular Assembly (VMA) unit
Pressure sensorIncluded
External floating/3-wire or proportional actuatorSupported
Supply voltage20-30 VAC at 50 or 60 Hz
Optional fuse current1.2 Amps
Power consumption3 VA maximum (Relay, actuator, and valve requirements not included)
Operating temperature0 to 50°C (32 to 122°F)
Storage temperature-40 to 70°C (-40 to 158°F)
Terminations6.3 mm (1/4 in.) spade lugs (communication terminations have screw terminals)
Communication bussesN2 Bus and Zone Bus
Controller addressingDIP switch set (1-253)
Request a Repair

The AP-VMA1430-0 VMA unit is an HVAC system accessory manufactured by Johnson Controls. This unit is a VMA1430 series VMA or Variable Air Volume Modular Assembly unit. It is a digital device, and it is prewired. It includes a pressure sensor and supports a floating/3-wire or proportional external actuator. The supply voltage range required for operation is 20 to 30 Volts AC at 50 or 60 Hz. The power consumption rating of the AP-VMA1430-0 is 3 VA maximum, excluding any actuator, relay, and valve requirements. It is designed to operate at ambient temperatures between 0 and 50°C (32 and 122°F), and it can be safely stored at ambient temperatures between -40 and 70°C (-40 and 158°F). The terminations of the AP-VMA1430-0 unit are equipped with standard 6.3 mm (1/4 in.) spade lugs, while the unit’s communication terminations use screw terminals. It supports serial interfaces such as the N2 Bus and Zone Bus. The controller addressing is set through DIP switches to settings from 1 to 253, with addresses 254 and address 0 or address 255 reserved. The AP-VMA1430-0 supports communication over the N2 Bus to NCM or N30 supervisory controllers. It is housed in a plastic enclosure with a UL94-5VB Plenum flammability rating. The AP-VMA1430-0 controller offers reliable performance and control for heating, ventilation, and air conditioning systems in commercial and industrial settings. The AP-VMA1430-0 unit should be mounted on a flat, vertical surface. It can be mounted on the side of a VAV box. The AP-VMA1430-0 VMA unit’s optional 24 Volts AC fuse current rating is 1.2 Amps.
