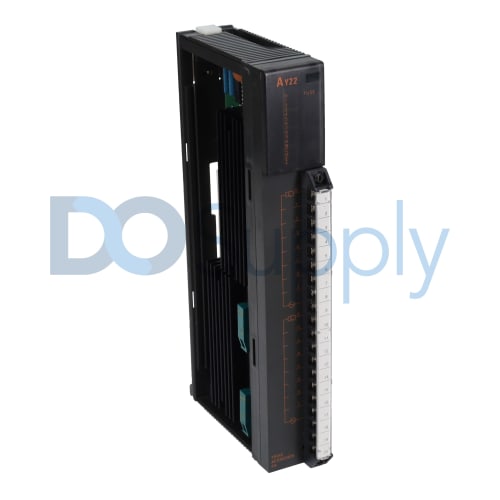

AY22
Mitsubishi Electric created the adaptable AY22 bidirectional thyristor output module specifically for interaction with Mitsubishi Electric PLCs. It has 16 input terminals, offers electrical isolation to reduce electrical noise, and has strong features including surge absorption and short circuit protection. It effectively manages power loads while operating at 12/24V DC input voltage and 2A current, making it indispensable in a variety of industrial applications such as transportation, medical equipment, and automation duties.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for AY22
| Manufacturer | Mitsubishi |
|---|---|
| Product Type | Digital Input/Output Module |
| Product Line | A Series |
| Part Number | AY22 |
| Weight | 1.38 lbs (0.62 kg) |
| Product Series | MELSEC-A series |
| Operational Functions | Output unit |
| Output Type | TRIAC outputs |
| Output point | 16 points |
| Input | 24 VDC tolerant inputs |
| Output | 30 VDC or 24 VAC outputs |
| Response time | one millisecond |
| Maximum AC Load | 240 volts AC |
| Size | 250(Height)×37.5(Wide)×121(Deep)mm |
The AY22 bidirectional thyristor output module, crafted by Mitsubishi Electric, stands as a versatile and reliable component within the realm of industrial automation. Tailored for integration with Mitsubishi Electric programmable logic controllers (PLCs), it forms an indispensable part of the MELSEC-A product line, extending its utility across a wide spectrum of applications. This module offers crucial electrical isolation, fortifying its resilience against electrical noise and ensuring seamless operation. With an input voltage rating of 12/24 volts DC and a current rating of 3/7 milliamperes, it exhibits a potent capacity to handle various control tasks. Boasting a total of sixteen input points, it commands flexibility in managing diverse inputs. Catalog number AY22 distinguishes itself with protective features, including short circuit protection and a surge absorber. It showcases a voltage rating of 240 volts AC and a current rating of 2 amperes, making it apt for controlling power loads. Its response time, a brisk 1 millisecond, underscores its agility in real-time operations. With physical dimensions of 250mm (height) by 37.5mm (width) by 121mm (depth) and a weight of approximately 0.7 kilograms, it melds compactness with robust functionality. In practice, the AY22 finds a home in a plethora of sectors, including transportation, medical equipment, industrial automation, and machine control, among others. Its ability to manage power loads extends to a maximum of 24 volts Alternating Current (AC) or 30 volts Direct Current (DC). In essence, the AY22 bidirectional thyristor output module embodies Mitsubishi Electric's commitment to delivering a reliable, adaptable, and high-performance solution for diverse industrial automation needs.
