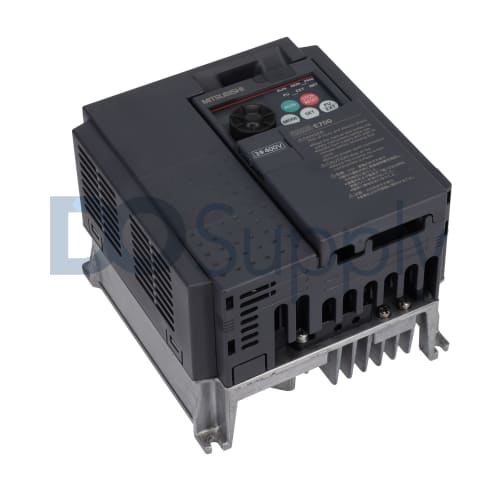

FR-E740-0.75K

The FR-E740-0.75K frequency inverter is part of the E700 and FR-E700 series of standard frequency inverters manufactured by Mitsubishi. It is a standard frequency inverter that operates with an output power rating of 0.75 kW and a 3-phase voltage range of 380-480 Volts AC. This means that its minimum rated voltage for normal operation is 380 Volts AC and its maximum rated voltage for normal operation is 480 Volts AC. The FR-E740-0.75K inverter is designed to work with AC voltage and can be used in applications with induction motors. The inverter’s permissible voltage range is between 325 Volts AC and 528 Volts AC. The FR-E740-0.75K frequency inverter’s rated output current is 2.6 Amps at 50 degrees Celsius, and the inverter’s rated motor capacity is 0.75 kW. The control methods supported by this inverter are V/F control and magnetic flux vector control. Additionally, it features a built-in display. The built-in display is a 4-digit LED type of display, and it can use a Safe Torque Off (STO) function. The FR-E740-0.75K inverter has multiple digital and analog inputs and outputs for various control and monitoring purposes. It specifically has 6 integrated digital inputs, 2 digital outputs (transistors), one digital output (relay), 2 analog inputs, and one analog output. The terminal block type is a screw terminal block that supports reliable connections. The FR-E740-0.75K inverter supports expandability and it has 1 RS-485 port, 1 USB port, and a built-in MODBUS-RTU network for easy integration into control systems. Since it has an IP20 protection rating, the FR-E740-0.75K inverter is protected from small amounts of dust, and it is suitable for indoor use. It also has a low leakage current rating of 1mA.
