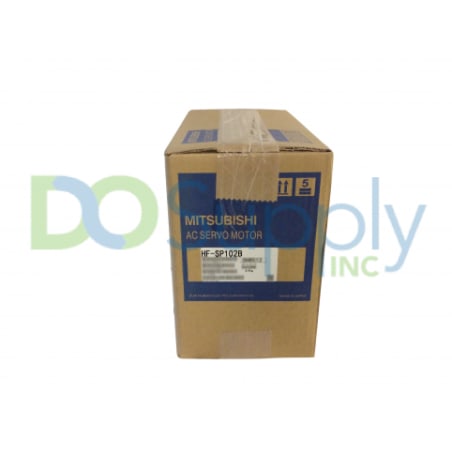

HF-SP102B

The Mitsubishi HF-SP102B is an AC servo motor known for its effective torque output and speed capabilities. With a rated output of 1 kilowatt, this motor is engineered to reach a standard speed of 2,000 revolutions per minute (RPM), providing the necessary power for various industrial tasks.

This device operates under a voltage range of 200 to 230 Volts AC, designed for a 3-phase power supply configuration. Operating at a frequency of 50 to 60 Hertz, it can also handle a maximum speed of 3,000 RPM to accommodate demanding applications requiring higher dynamics.

It features a straight shaft design, allowing for straightforward integration into different setups, while the electromagnetic brake ensures reliable stopping capabilities. However, it should be noted that this model does not include an oil seal, which may be a consideration for specific applications. The built-in absolute feedback encoder enables precise control of motor positioning, aiding in maintaining operational accuracy.

The motor boasts a degree of protection rated at IP67, offering excellent resistance to dust and water ingress, making it ideal for applications in challenging conditions. The mounting method is a 130 x 130 mm flange, which simplifies installation in various configurations. With a nominal torque of 4.77 Newton-meter and a maximum torque of 14.3 Newton-meter, the HF-SP102B is equipped to handle various loads effectively.
