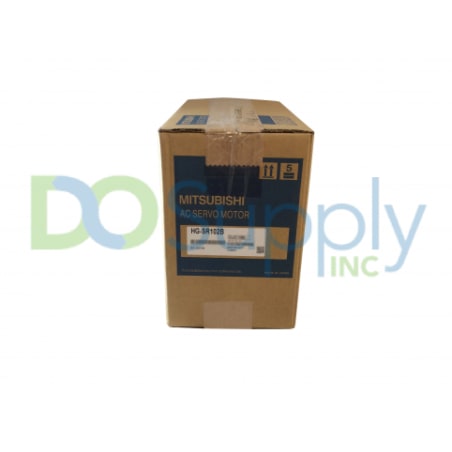

HG-SR102B

A servo motor painstakingly created to orchestrate accuracy in motion control applications, the Mitsubishi HG-SR102B is a notable member of the MELSERVO-J4 family. Its 1 kW rated capacity and 4.8 Nm rated torque combine to create dependable performance that supports a variety of industrial operations. This motor displays its skill in the area of torque delivery, producing a maximum torque of 14.3 Nm. Its operational speed ranges from rated rates of 2000 rpm to peak speeds of 3000 rpm. Due to its dynamism, the HG-SR102B may be used in a wide range of applications as a responsive instrument. Its anatomical design resembles a straight shaft type and is strengthened by an integrated braking mechanism. The control that this motor has over the activities it regulates is strengthened by this brake, which also strengthens safety standards. The HG-SR102B is shielded from harm thanks to its high IP67 certification, which effectively protects it from the dangers of dust and water infiltration. This is a crucial aspect, especially in situations where steadfast performance against all difficulties is required. A supply voltage of 200 V powers its operation, ensuring compatibility with AC applications. By supporting both absolute and incremental encoder types, the motor promotes flexibility and enables precise position feedback. With 4194304 encoder pulses per revolution, this precision is supported, resulting in exceptional accuracy and resolution. Despite having small measurements of 130 mm in width, 177.5 mm in height, and 222 mm in depth, this engine has a sturdy build, as seen by its 8.2 kilogram weight. It is an appropriate contender for a wide range of applications because of its combination of compactness and solidity.
