MDS-C1-SP-300

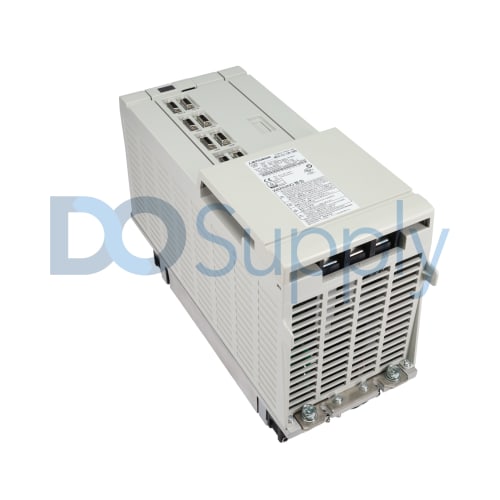

The Mitsubishi MDS-C1-SP-300 (MDSC1SP300) industrial drive is a spindle drive unit from the Mitsubishi MELDAS MDS-C1 series. It was designed for CNC applications. The MDS-C1-SP-300 drive operates at 155 Volts AC of AC output voltage and at 200 Volts AC to 230 Volts AC of AC input voltage at 50/60 Hertz of frequency. This spindle drive also supports a DC input voltage range of 270 to 311 Volts DC. Its current ratings are 130 Amps for output current and 144 Amps for input current. The MDS-C1-SP-300 spindle drive has 8 ports and 3 terminals. The ports labeled “CN9,” “CN6”, “CN7,” and “CN8” on the spindle drive are open ports, and these ports provide opportunities for making additional connections or extensions to other devices. The encoder of a compatible spindle motor can be connected to the CN5 port by using a dedicated cable to establish the conneection. Furthermore, this spindle motor must connect to terminals U, V, and W for proper control and operation. Additionally, the CN4 port of the MDS-C1-SP-300 drive can be connected to the corresponding port on a power supply module, ensuring optimal power distribution in the system. As part of the MDS-C1 product line, the MDS-C1-SP-300 spindle drive unit has an efficient heat-dissipating structure and features a shallower fin section than the spindle drives from the MDS-A/B series. The MDS-C1-SP-300 spindle drive weighs about 11.85 pounds. Its output power rating is 30 kilowatts. The MDS-C1-SP-300 spindle drive is compatible with spindle motors that have rotation speed ratings of less than 10,000 RPM. It can operate at ambient temperatures between 0 degrees Celsius and 55 degrees Celsius.
