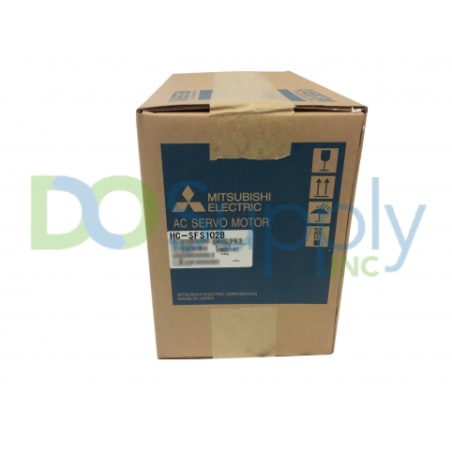

HC-SFS102B

The Mitsubishi HC-SFS102B servo motor is an AC servo motor with good performance and medium inertia. It is capable of running at a maximum speed of 2000 RPM and has a rated output power of 1 kW. It is a component of the Melservo series and is famous for its versatility, which has earned it a place in a wide variety of general-purpose applications. Some examples of these applications include robotics and transmission gear. When applying brakes, the motor's electromagnetic brake, which improves both control and safety, is activated. The HC-SFS102B is protected against moderate exposure to debris, dust, and water thanks to its standard protection rating of IP65 (which may be improved to IP67 with the appropriate protective gear). This rating protects against dust, debris, and water. The motor has to be securely attached to the device in order to prevent any problems, damage, or threats to the machinery. The motor is a member of the 400-volt voltage class. It is powered by three-phase alternating current (AC), requires an input voltage of 123 volts AC, and requires an input current of 6 amps. It is equipped with a conventional straight shaft and an absolute position detector so that exact positioning may be achieved. Notably, the servo motor model HC-SFS102B has three different modes that may be selected, which allows it to fulfill the requirements of medium-inertia applications ranging from low to high speed. Because it has a high-resolution encoder with 131072 p/rev (17 bits), it is possible to achieve exceptional performance and stability even when operating at low speeds. The overall performance of the Mitsubishi HC-SFS102B is trustworthy, and it offers precise positioning in a wide variety of industrial situations, such as X-Y working platforms, robots, and transmission gear. It is an adaptable and potent solution that may be used for a variety of motion control tasks.
