MR-J2-20A

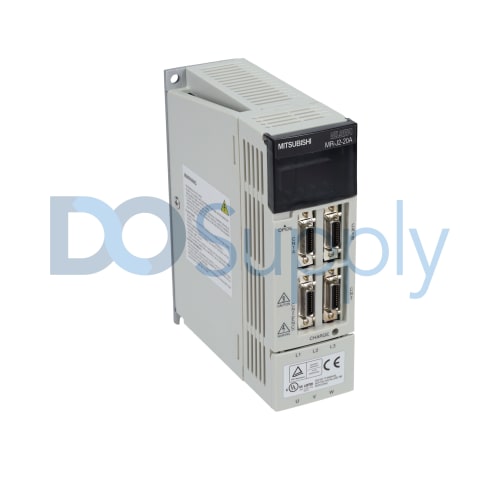

An AC servo amplifier, the Mitsubishi MR-J2-20A, is intended specifically for use in settings requiring a high level of performance. It has a power rating of 200 W, which makes it suited for the many requirements that come with servo control. Either 1-phase AC at 230 V and 50/60 Hz or 3-phase AC with a range of 200-230 V and a frequency of 50/60 Hz can supply the input voltage. Both types of AC can operate at a frequency of 50 or 60 Hz. The amplifier has a frequency range of 0-360 Hz and a constant output voltage of 170 V, which together guarantee accurate control of any motors to which it is connected. It is pre-wired with two I/O signal connectors, allowing for easy incorporation into control systems, and this is standard. The MR-J2-20A comes equipped with a communication connector that is built right in, making it simple to connect it to other devices and computer networks. It is also capable of supporting an analog output monitor for a personal computer, boosting its adaptability for use in a variety of applications. An LED display with a capacity of four digits and seven segments is included with the amplifier. This display allows for critical operational information to be viewed at a glance. In order to guarantee the accuracy of the data, the MR-J2-20A comes equipped with battery support for absolute position data backup. This safeguards vital information in the event that power is interrupted. The fact that the MR-J2-20 Adevice weighs only 0.7 kg (1.5 lb) despite having such powerful capabilities helps to make it more manageable and straightforward to set up.
