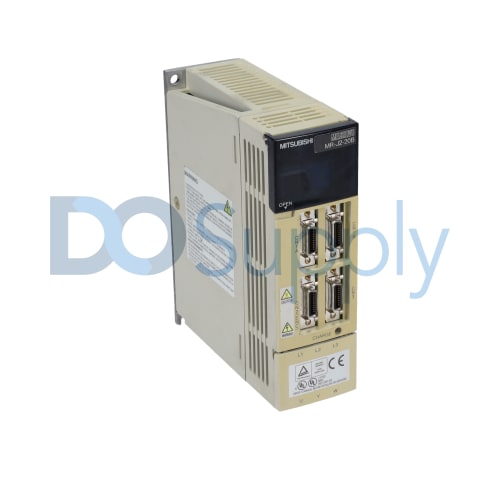

Mitsubishi MELSERVO MR-J2 MR-J2-20B

Product image is representative; revision or series may vary. Contact us to request a specific version.

MR-J2-20B

|
Need a Specific Revision?

The Mitsubishi MR-J2-20B is an AC servo amplifier designed for precise motion control. It operates efficiently within a voltage range of 200 to 230 VAC and provides an output capacity of 200 watts. This unit can function in both three-phase and single-phase environments, supporting an output current of 1.5 A.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for MR-J2-20B

ManufacturerMitsubishi
Product TypeAC Servo Amplifier
Product LineMELSERVO MR-J2
Part NumberMR-J2-20B
Weight1.94 lbs (0.88 kg)
Rated Output Capacity200W
Output Rated Current1.5 A
Input Voltage200–230 VAC
Min. Frequency50 Hz
Max. Frequency60 Hz
Phase Compatibility3 or 1 Phase
IP RatingIP20
Enclosure TypeOpen type
Cooling MethodNatural Cooling
Min. Operating Temperature0°C
Max. Operating Temperature55°C
Request a Repair

The Mitsubishi MR-J2-20B is categorized as an AC servo amplifier, delivering high-performance motion control for industrial applications. It is engineered to achieve a rated output capacity of 200 watts and can sustain an output current of 1.5 amps. This amplifier is configured to accept input voltages within the range of 200 to 230 VAC, providing flexibility in power supply options.

Compatible with both one-phase and three-phase systems, the MR-J2-20B can adapt to varying electrical configurations while requiring minimal setup changes. It operates effectively at frequencies between 50 Hz and 60 Hz, ensuring consistent performance for typical industrial scenarios.

The amplifier boasts an IP20 rating, indicating that it is open-type and suitable for installation in locations that are not exposed to significant dirt or moisture. The natural cooling system helps in maintaining optimal operating temperatures, with a working range from 0°C to a maximum of 55°C. This specification supports continuous use under moderate environmental conditions while ensuring the longevity of the device.
