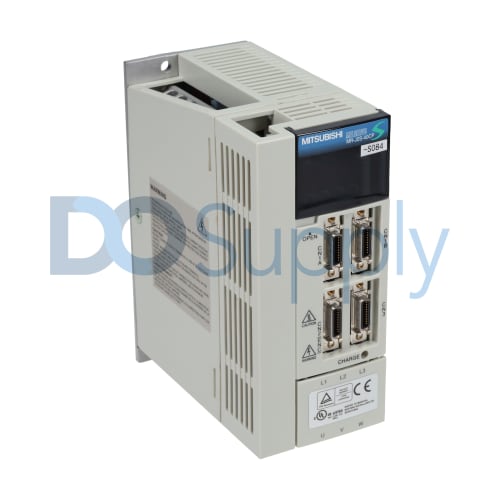

MR-J2S-40CP-S084

Part Number MR-J2S-40CP-S084 is a product type of a Servo Amplifier. It is made by Mitsubishi Electric and controls and drives an electric motor. It originates from Mitsubishi's MELSERVO-J2 super series, known for its high-performance servo amplifiers and motors. And it requires an AC power supply for operation. The MR-J2S-40CP-S084 operates with a 3-phase input voltage rating of 200-230 volts AC or a 1-phase input voltage rating of 230 volts AC, generating a power rating of 400 watts. It hass a 30-amp rated main circuit inrush current, the highest current drawn during device startup. This servo amplifier excels in providing precise motion control for various servo motors. The MR-J2S-40CP-S084 features a discharge time of 2 minutes, indicating the duration required for the device to completely discharge after being turned off. Its power supply capacity is rated at 0.9kVA, reflecting the maximum power deliverable to the drive. Since this amplifier is designed to operate at rated torque, the MR-J2S-40CP-S084 servo amplifier produces 35 watts of heat, which reduces to 15 watts when the servo is turned off. With a low to medium inertia moment ratio, this servo amplifier can effectively manage systems with substantial inertia levels, enabling precise control over heavy loads. The MR-J2S-40CP-S084 servo amplifier demonstrates an inverse efficiency rating of 85%, signifying its energy efficiency. Communication interfaces utilize CC-Link technology to establish connections with other devices. Dimensions measure 168mm in height, 70mm in width, and 135mm in depth. The operational ambient air temperature ranges from 0 to 55 degrees Celsius.
