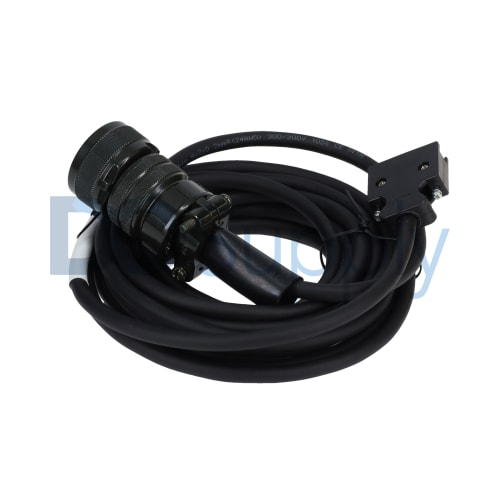

Product image is representative; revision or series may vary. Contact us to request a specific version.
MR-JHSCBL5M-L
The MR-JHSCBL5M-L cable by Mitsubishi is designed for connecting servo amplifiers to servo motor encoders, facilitating precise position feedback. It is a 5-meter long shielded cable that features a 10-core design and standard flexibility.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for MR-JHSCBL5M-L
| Manufacturer | Mitsubishi |
|---|---|
| Product Type | Servo Motor Encoder Cable |
| Product Line | MELSERVO MR-J4 |
| Part Number | MR-JHSCBL5M-L |
| Weight | 1.13 lbs (0.51 kg) |
| Length | 5 m |
| Core Count | 10 Core |
| Shielded | Yes |
| Wire Gauge | AWG24 |
| Function | Connects a servo amplifier to a servo motor encoder to supply position feedback data. |
| Flexibility Type | Standard Flex |
| Servo Amplifier End Connector Type | 10-pin rectangular, dual-row mini-clamp style connector |
| Servo Motor Encoder End Connector Type | 10-pin female circular MS (Military Standard) connector |
| Cable Color | Black |
| Minimum Storage Temperature | -20°C |
| Maximum Storage Temperature | 80°C |
The MR-JHSCBL5M-L, manufactured by Mitsubishi, acts as a vital link between a servo motor encoder and a servo amplifier. This cable spans a length of 5 meters and is structured with 10 cores, enabling efficient transmission of position feedback data. Its wires, made to the AWG24 gauge, are also shielded, which minimizes electromagnetic interference and enhances signal integrity in operational environments.
On the connector side, the cable includes a 10-pin rectangular, dual-row mini-clamp style connector for interfacing with the servo amplifier. Meanwhile, the servo motor encoder side is fitted with a 10-pin female circular MS connector, adhering to military standards, which ensures secure and reliable connections.
The cable is finished in a sleek black color and is designed with standard flexibility to facilitate easy routing in installations. It can be stored under temperatures ranging from -20°C to a maximum of 80°C, making it suitable for a variety of storage conditions. Overall, the MR-JHSCBL5M-L is tailored to provide robust performance in demanding applications.
