Omron 3G2 3G2A6-LK201-EV1

Product image is representative; revision or series may vary. Contact us to request a specific version.

3G2A6-LK201-EV1

|
Need a Specific Revision?

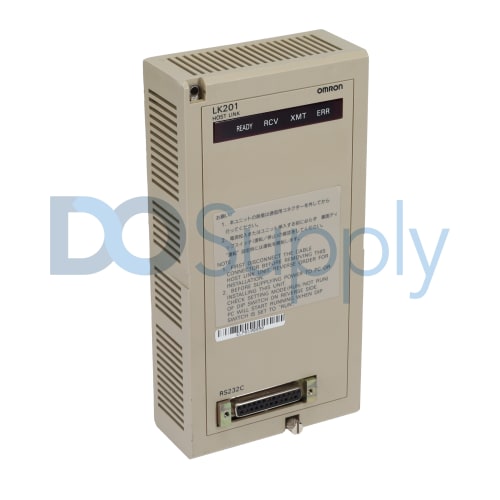

Manufactured by Omron Automation & Safety, the 3G2A6-LK201-EV1 host link unit enables smooth communication between a host computer for industrial use and peripherals. It offers dependable integration and control of automation systems with an RS-232C connection and a CPU mounting option. It supports one PC, weighs 600g, is simple to mount, and works with single-link host computer systems. Its compatibility with multiple PC versions and two optical ports increases the unit's flexibility in industrial applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 3G2A6-LK201-EV1

ManufacturerOmron
Product Line3G2
Part Number3G2A6-LK201-EV1
Weight2.00 lbs (0.91 kg)
Number of Supported PCs per Unit1 PC
Storage Temperature-20 to 60 degrees Celsius
Operating Temperature0 to 50 degrees Celsius
Mounting OptionCPU Mounting
Compatible PCsV1 models, C200H, C120, C500, C1000H, C2000H
Connection OptionRS-232C
Adapter OptionOne or Two 5-Volt AC Adapters
Power Consumption1 A max at 5 Volts DC
Interface Option2 Optical Interfaces
Request a Repair

The 3G2A6-LK201-EV1 host link unit is a high-performance, dependable system for linking an industrial host computer to its peripherals. This device was designed and produced by Omron Automation & Safety. It's compatible with a wide range of PC models, including V1, C200H, C120, C500, C1000H, and C2000H models, and has a CPU mounting option, so it's flexible and simple to include in automation systems. The host link device is compatible with a reliable and quick RS-232C connection, allowing the host computer to smoothly monitor and operate the attached PC. It's possible to connect one PC to the host machine using its two optical interface devices and one or two 5-Volt AC adapters, and it uses as little power as possible to do so. The up to 600g lightweight design makes it ideal for single-link kinds of host computer systems and makes it easy to attach. The versatility of the 3G2A6-LK201-EV1 device is increased by its ability to allow a single host computer to connect to up to 32 PCs all at once. It works reliably in a wide range of temperatures, from 0 to 50 degrees Celsius when in use and from -20 to 60 degrees Celsius while stored. In order to facilitate easier installation, this host link device was designed and built as a "CPU mounting" form. The Omron 3G2A6-LK201-EV1 is an excellent option for industrial applications that call for dependable and efficient communication between host computers and personal computers because of its nature and purpose of providing such a means.
