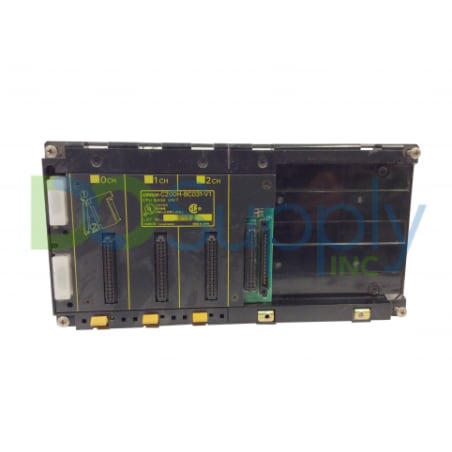

C200H-BC031-V1

Omron Corporation developed this C200H-BC031-V1 as a CPU backplane. It is a component of the SYSMAC C200 series programmable controller. It works in various automation systems for attaching multiple units within the PLC system. The backplane's three (3) slots are used to hold up to three devices, including CPU and I/O modules. It enables the programmable controller system to provide adaptability in configuration, expanding the programmable control system. The backplane is responsible for providing power and signal connections to the I/O modules. Additionally, each slot is equipped with a built-in fuse to ensure the I/O modules are protected from any potential overcurrent situation. The backplane size is 130 mm in height, 118 mm in width, and 260 mm in width (5.1 inches x 4.65 inches x 10.2 inches), allowing simple setup and integration into control panels or machinery. The backplane has a current consumption of 0.11 amps at 5 volts rated DC power supply. The C200H-BC031-V1 backplane is suitable with various Omron CS1 and C200H series equipment supporting CS and C200H series basic I/O CPU bus units. This adaptability enables the integration of several types of I/O and CPU units in a programmable controller to fulfill the needs of individual applications. It is relatively simple to install and maintain and offers a long-life span. The weight of the backplane is roughly 0.7 kg, making it easy to handle during installation and maintenance. This module meets several standards, including CE, UL, and IEC. Overall, the Omron C200H-BC031-V1 CPU backplane is a dependable and adaptable component for installing units in Omron C200H series programmable controllers.
