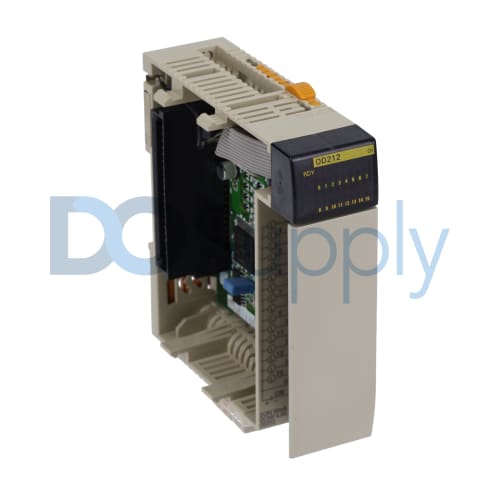

CQM1-OD212

The CQM1-OD212 Transistor Output Unit, meticulously crafted by Omron Automation, stands as a pinnacle of practicality within the realm of industrial automation. A compact and versatile solution, this unit orchestrates the seamless control of external devices with unparalleled finesse. With a robust ensemble of 16 output points, its prowess extends to a maximum switching capacity ranging from 50 mA at 4.5 VDC to 300 mA at 26.4 VDC, epitomizing precision in device manipulation. The unit's resonance with reliability is evidenced by its trifling leakage current of 0.1 mA at most, harmonized by a residual voltage capped at 0.8 V, collectively culminating in unwavering operational stability and minimal signal interference. Boasting a rapid ON delay of 0.1 ms and an efficient OFF delay of 0.4 ms, it orchestrates swift response times while deftly orchestrating device control. This unit is uniquely designed with 16 points per common and 1 circuit, catering to diverse wiring configurations, and its lean appetite for power, consuming a mere 170 mA at 5 VDC, duly stamps its energy-efficient credentials. Safety is meticulously enshrined, with an integrated 5A fuse per common, entrusted with safeguarding operations under qualified supervision. As a power-thirsty entity, it necessitates a service power supply of 40 mA minimum, ranging from 5 to 24 VDC ±10%, meticulously calculated at 2.5 mA per ON point, assuring unflinching performance stability. Though weighing a mere 180 grams, this unit's significance surpasses its physical stature, its nimble installation attributes a testament to its practicality. Omron's CQM1-OD212, an embodiment of precision, efficiency, and adaptability, stands resolute as a cornerstone of automation ingenuity.
