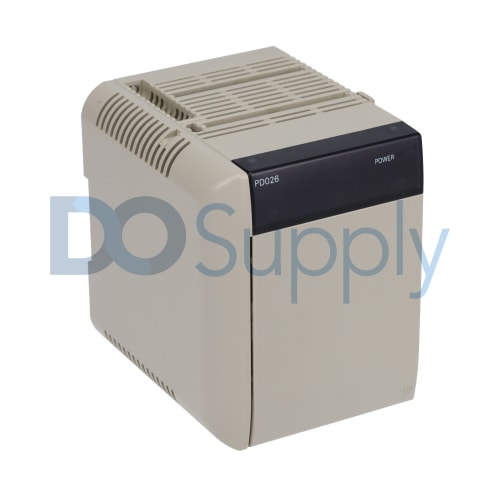

Omron CQM1 CQM1-PD026

Product image is representative; revision or series may vary. Contact us to request a specific version.

CQM1-PD026

|
Need a Specific Revision?

The Omron CQM1-PD026 Power Supply Unit powers numerous applications reliably. It runs well at 24 VDC and 20–28 VDC. Maximum load power consumption is 50 W. It distributes electricity efficiently with 6 A (30 W) at 5 VDC. The device can tolerate 30 A of inrush current. Its 20 M (at 500 VDC) insulating resistance between AC external terminals and GR terminals improves safety and performance. Its dielectric strength of 2,300 VAC at 50/60 Hz for 1 minute between AC external and GR terminals surpasses strict safety standards. The unit's maximum leakage current is 20 mA, enhancing its safety.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for CQM1-PD026

ManufacturerOmron
Product TypePower Supply Units
Product LineCQM1
Part NumberCQM1-PD026
Weight1.13 lbs (0.51 kg)
Supply voltage24 VDC
Operating voltage range20 to 28 VDC
Power consumption50 W max.
Output capacity5 VDC: 6 A (30 W)
Inrush current30 A max
Insulation resistance20 M min. (at 500 VDC) between AC external terminals and GR terminals
Dielectric strength2,300 VAC 50/60 Hz for 1 min between AC external and GR terminals
leakage current10 mA max. 1,000 VAC 50/60 Hz for 1 min between DC external and GR terminals
Noise immunity1,500 Vp-p, pulse width: 100 ns to 1 s, rise time: 1 ns (via noise simulation)
Vibration resistance10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 (see note 2) in X, Y, and Z directions for 80 minutes each
Shock resistance147 m/s2 (21.8 m/s2 for Contact Output Units) 3 times each in X, Y, and Z directions
Request a Repair

The Omron CQM1-PD026 stands out as a reliable power supply unit designed for industrial applications. It serves as a dependable power source for linked devices and systems, running at a constant 24 volt DC supply voltage. The operating capability of the CQM1-PD026 covers the steady voltage range of 20 to 28 volts DC, ensuring reliable energy transmission. This device orchestrates an effective dance of electrical energy, maximizing its use, with a maximum power usage of 50 W.A powerful inrush current of 30 A flows through during the commencement phase, providing enough power for devices during the crucial startup period. With a 6A (30W) output at 5VDC, this power supply unit shows off its power and provides dependable power for gadgets using this voltage. Its electrical integrity is supported by a strong dielectric strength of 2,300 V AC at 50/60 Hz and a high insulation resistance of 20 ohms. The device is protected against leaks and has a maximum leakage current of 10 mA at 1,000 VAC for one minute. Its noise interference shield has a maximum potential voltage of 1,500 volts, orchestrating a symphony of signal protection. In addition to stability, it can sustain accelerations of 9.8 m/s2 from 57 to 150 Hz in all directions for 80 minutes, as well as vibrations with an amplitude of 0.075 mm and frequencies ranging from 10 to 57 Hz. The Omron CQM1-PD026 stands out as a steady and dependable source of power in the vast tapestry of industrial landscapes, paving the way for a continuous and secure supply of energy in a variety of applications.
