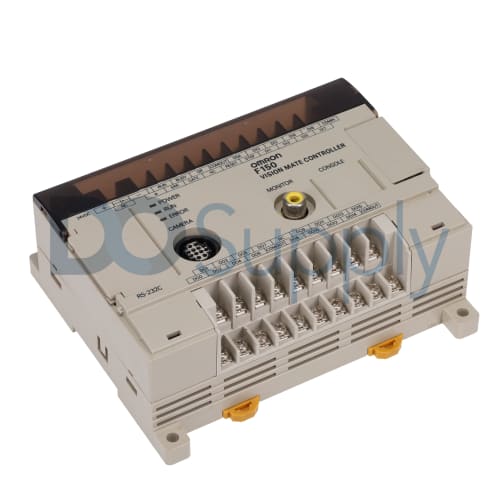

Omron F150-3 F150-C10E

Product image is representative; revision or series may vary. Contact us to request a specific version.

F150-C10E

|
Need a Specific Revision?

The F150-C10E from Omron functions as a Vision Mate Controller, engineered for efficient image processing tasks. Operating at a voltage of 24 VDC, this device is suitable for various industrial applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for F150-C10E

ManufacturerOmron
Product TypeVision Mate Controller
Product LineF150-3
Part NumberF150-C10E
Weight0.75 lbs (0.34 kg)
Power Supply Voltage24 VDC
Current Consumption0.5 A
Parallel InterfaceNPN open Collector
Input Signals7 inputs
Output Signals16 outputs
Output Voltage30 VDC
Output Current50 mA
Mounting TypeDIN Rail mount
Min. Operating Temperature0°C
Max. Operating Temperature50°C
Min. Storage Temperature-25°C
Max. Storage Temperature65°C
Request a Repair

Omron's F150-C10E is a dedicated Vision Mate Controller designed for precise image analysis. This device operates on a power supply voltage of 24 VDC and has a current consumption requirement of 0.5 A, making it energy-efficient in various settings. Its parallel interface is arranged in an NPN open collector format, which simplifies integration with other components.

The controller is capable of handling 7 input signals, facilitating effective communication with connected devices. It also supports 16 output signals, delivering strong performance with a maximum output voltage of 30 VDC and an output current rating of 50 mA.

For mechanical installation, the F150-C10E is crafted for DIN rail mounting, ensuring a tight and secure fit in cabinet setups. In terms of thermal specifications, it operates within a range from 0°C to 50°C, with the additional benefit of a storage capability from -25°C to 65°C, allowing it to withstand various environmental conditions.
