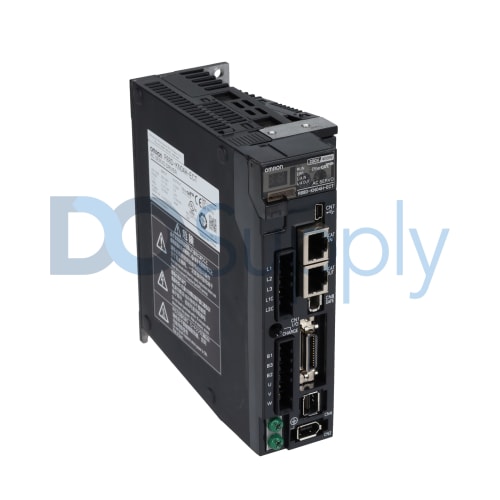

R88D-KN04H-ECT

The R88D-KN04H-ECT drive is a servo drive that was designed for servo motor control applications. This servo drive was manufactured by Omron Automation in the G5 series as a standard G5 series AC servo drive. The R88D-KN04H-ECT servo drive is AC-powered, and it is compatible with both single-phase AC voltage and 3-phase AC voltage. It uses a single-phase or 3-phase 200 Volts AC power supply when it operates. The R88D-KN04H-ECT servo drive can support 400 Watts of output power. It can also support a circuit breaker with a current rating of 10 Amps. It is compatible with a variety of Omron G5 series servomotors. The R88D-KN04H-ECT servo drive can control servomotors that have incremental encoders and servo motors that have absolute encoders. It can also control servomotors that have a variety of optional features, including brakes, oil seals, keys, and different shaft types. The R88D-KN04H-ECT servo drive and the Omron G5 servomotors that are compatible with it support speed ratings of 3000 RPM or 3000-r/min. The R88D-KN04H-ECT servo drive is also compatible with the Omron 3G3AX-DL2007 and 3G3AX-AL2025 reactors. This servo drive can be front-mounted with front-mounting brackets, or it can be wall-mounted. The R88D-KN04H-ECT servo drive’s inrush current ratings are 14 A0-p for its main circuit power supply and 28 A0-p for its control circuit power supply. When the R88D-KN04H-ECT servo drive uses a 3-meter cable, its leakage current rating is 0.96 mA with single-phase AC voltage and 1.27 mA with 3-phase AC voltage. The R88D-KN04H-ECT servo drive supports a built-in capacitor that can absorb 26 J of regenerative energy.
