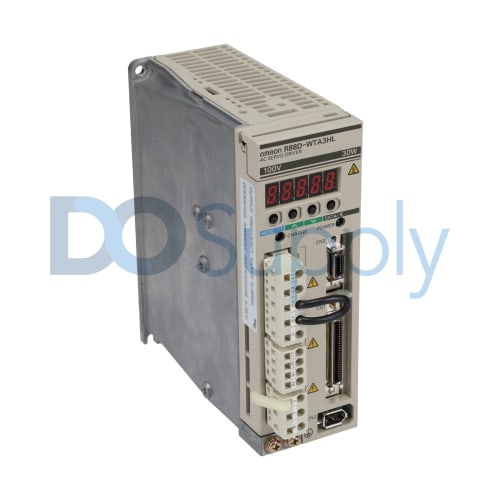

Omron R88D R88D-WTA3HL

Product image is representative; revision or series may vary. Contact us to request a specific version.

R88D-WTA3HL

|
Need a Specific Revision?

The R88D-WTA3HL from Omron is an AC servo drive that provides efficient motor control. This module is rated for a power output of 30 watts and can deliver a continuous current of 0.66 amperes, while its peak current capability is 2.0 amperes.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for R88D-WTA3HL

ManufacturerOmron
Product TypeAC Servo Drive
Product LineR88D
Part NumberR88D-WTA3HL
Weight1.81 lbs (0.82 kg)
Power Output30 W
Rated Current Output0.66 A
Peak Current Output2.0 A
Input Supply100/115 VAC
Phase type1 phase
Control MethodAll-digital servo (PWM)
Operating Temperature Range0°C to 50°C
Storage Temperature RangeUp to 85°C
Humidity Tolerance10% to 95% relative humidity
Installation Altitude1000 m, without derating
Recommended Wire Sizes1.25 mm²
Request a Repair

Omron's R88D-WTA3HL AC servo drive is engineered for precise motion control in various applications. With its rated power output of 30 watts, it offers efficient operation. The servo drive is capable of outputting a continuous current of 0.66 A, and under peak conditions, it can handle up to 2.0 A, providing a robust response for demanding tasks.

This module operates on a single-phase electrical supply of 100/115 VAC, reinforcing its versatility in different installations. The all-digital control approach, based on pulse width modulation (PWM) methods, ensures accurate and reliable performance across various scenarios.

In terms of environmental specifications, the R88D-WTA3HL supports a wide operating temperature range from 0°C to 50°C, making it suitable for a range of settings. Storage capabilities extend to temperatures as high as 85°C. Additionally, it can tolerate humidity levels between 10% and 95% relative humidity, ensuring stability and functionality in less-than-ideal conditions.

The drive can be installed at altitudes of 1000 meters without derating performance, making it adaptable to different geographical conditions. Lastly, for optimal performance, it is recommended to use wire sizes of 1.25 mm² during installation. This AC servo drive from Omron's R88D series is a reliable solution for precise motor control needs.
