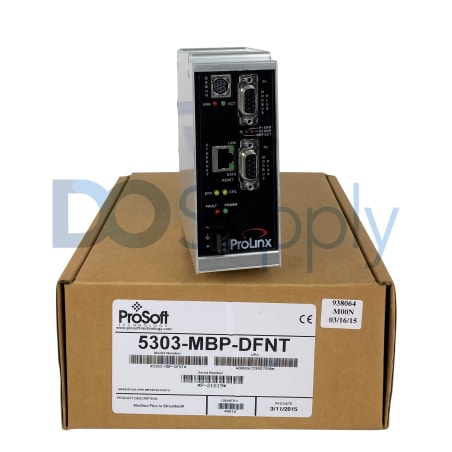

Schneider Electric 5000 Series 5303-MBP-DFNT

Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with DO Supply's 2-year warranty.

Learn more

5303-MBP-DFNT

Need a Specific Revision?

The 5303-MBP-DFNT serves as a gateway between Modbus Plus and EtherNet/IP. This device operates at a nominal power supply of 24 VDC and supports a range between 18 to 36 VDC, with a maximum current load of 500 mA at 24 VDC. It operates effectively in temperatures ranging from –20 to 50°C and can be stored in conditions from –40 to 85°C, while also withstanding relative humidity levels from 5 to 95% non-condensing.

Call for an immediate quote

2 Year DO Supply Warranty

Available

Ships from Raleigh, NC

Learn more

Warranty

We sell industrial automation parts backed by our 2-year DO Supply Warranty.
Shipping

Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
Payment Methods

AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
Repairs & Exchanges

Repair and exchange services for all existing automation products.
Reseller Options

Drop shipping, blind shipping, and account shipping with no extra fees.

Technical specifications for 5303-MBP-DFNT

Manufacturer	Schneider Electric
Series	5000 Series
Part Number	5303-MBP-DFNT
Description	Modbus Plus to EtherNet/IP Gateway
Power Supply	24 VDC nominal
Operational Power Supply Range	18 to 36 VDC
Current Load	500 mA max @24 VDC
Operating Temperature	–20 to 50°C (–4 to 122°F)
Storage Temperature	–40 to 85°C (–40 to 185°F)
Relative Humidity	5 to 95% (non-condensing)
Dimensions (HxWxD)	13.2 x 5.25 x 11.48 cm (standard)
Data Transfer	Bi-directional
Mounting style	DIN-Rail

Request a Repair

The Schneider Electric 5303-MBP-DFNT functions as a Modbus Plus to EtherNet/IP gateway, allowing seamless communication between different network protocols. This device operates at a standard power supply of 24 VDC, with an operational voltage range extending from 18 to 36 VDC. It accommodates a maximum current draw of 500 mA when running at 24 VDC.

Designed for varied environments, the gateway functions within an operating temperature spectrum of –20 to 50°C (–4 to 122°F). It can be safely stored within temperatures from –40 to 85°C (–40 to 185°F). Relative humidity tolerances are set between 5% and 95%, addressing non-condensing scenarios to ensure reliable performance.

The physical dimensions of the unit are 13.2 cm in height, 5.25 cm in width, and 11.48 cm in depth, adhering to standardized sizes for easy integration in installations. The 5303-MBP-DFNT also features bi-directional data transfer capabilities, making it a versatile component for applications requiring robust network communication. Its installation is facilitated via a DIN rail mounting style, suitable for efficient setups in control panels and similar configurations.
