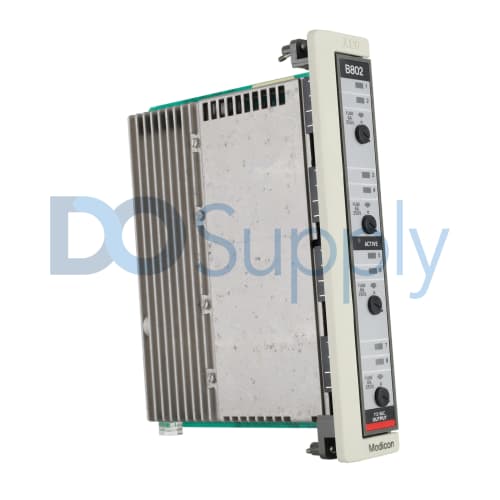

Schneider Electric 800 Series AS-B802-008

Product image is representative; revision or series may vary. Contact us to request a specific version.

AS-B802-008

|
Need a Specific Revision?

The AS-B802-008 is a Schneider Electric output module with a total of eight discrete outputs. This module operates on an AC voltage of 115V and supports frequencies of 50 or 60 Hz.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for AS-B802-008

ManufacturerSchneider Electric
Product TypeOutput Module
Product Line800 Series
Part NumberAS-B802-008
Weight2.75 lbs (1.25 kg)
Discrete OutputsYes
Number of Outputs8 Outputs
Voltage TypeAC
Voltage Rating115V AC
Frequency50/60 Hz
Operating Temperature0 to 40 degrees Celsius
Maximum Operating Altitude1000 meters above sea level without derating
Maximum Operating Humidity80% RH without condensation
Maximum Storage Humidity80% RH without condensation
Request a Repair

Schneider Electric's AS-B802-008 forms part of the 800 Series and serves as an output module featuring eight discrete outputs. This module delivers power using an alternating current (AC) with a rating of 115V, making it suitable for various industrial applications requiring reliable output control. The specified frequency for this unit ranges from 50 Hz to 60 Hz, ensuring compatibility with standard electrical systems.

Weighing approximately 2.7 lbs, this module is manageable for installation in different environments. It is engineered for operation in temperatures between 0 degrees Celsius to 40 degrees Celsius, thus ensuring stable performance in typical operational settings. Additionally, the AS-B802-008 is rated for use at altitudes up to 1000 meters above sea level without any decrease in function, providing flexibility in deployment.

This output module also accommodates significant operational challenges, as it can maintain functionality in conditions with humidity levels reaching 80% relative humidity (RH) without condensation. Similarly, it is designed for storage under identical humidity conditions. Overall, the AS-B802-008 output module is engineered to meet the demands of various automation tasks, providing essential control in a compact form.
