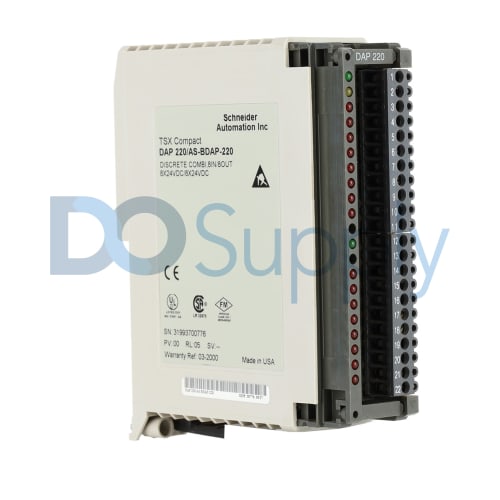

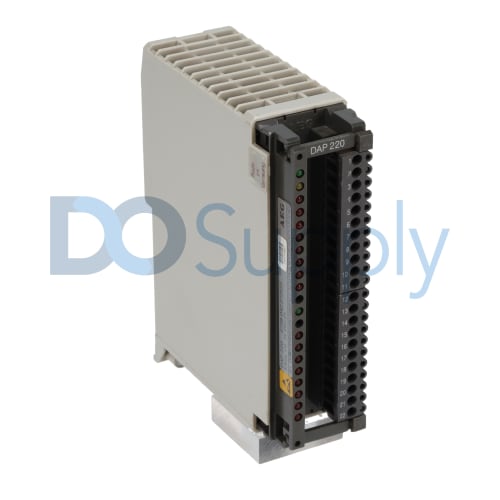

Schneider Electric A 120 AS-BDAP-220

Product image is representative; revision or series may vary. Contact us to request a specific version.

AS-BDAP-220

|
Need a Specific Revision?

The AS-BDAP-220 from Schneider Electric is a discrete I/O module. It features a single group of eight discrete inputs and a matching group of eight transistor outputs designed to operate effectively within a specified voltage range.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for AS-BDAP-220

ManufacturerSchneider Electric
Product LineA 120
Part NumberAS-BDAP-220
Weight1.00 lbs (0.45 kg)
Module TypeDiscrete I/O Module
Input Configuration1 group of 8 inputs
Output Configuration1 group of 8 transistors
Input Voltage Range20 to 30 VDC (true high)
Output Voltage Range12 to 30 VDC (positive), -2 to +5 VDC (negative)
Isolation TypeOptoelectrical isolation for all channels
Input Power Supply Voltage24 VDC (true high)
Current per Channel2 A continuous, 4 A surge
Input/Output Bus CompatibilityOptoelectrically isolated from bus
Current Consumption for Outputs1 A continuous
Response TimeInputs: 6 ms, Outputs: 10 ms
Surge Current Capability4 A peak
Request a Repair

The Schneider Electric AS-BDAP-220 operates as a discrete I/O module structured for effective integration in control systems. It accommodates one group of eight inputs and one group of eight outputs using transistors, allowing for versatile application in various automation scenarios.

This module functions well with an input voltage range between 20 to 30 VDC, which is classified as true high. For outputs, it supports positive voltages from 12 to 30 VDC and negative voltages ranging from -2 to +5 VDC. The isolation type employed is optoelectrical, safeguarding all channels from electrical noise and ensuring reliable signaling.

The power supply voltage required for inputs sits at 24 VDC, representing the true high state. Each channel is rated for 2 A continuous current, which can handle up to 4 A during surge conditions. This device is designed to be optoelectrically isolated from the input/output bus, ensuring mechanical integrity against potential faults.

Regarding performance, the AS-BDAP-220 has an input response time of 6 milliseconds and an output response time of 10 milliseconds, allowing quick and reliable signal processing. The current output consumption is specified as 1 A continuous, maintaining consistent performance throughout operation. Additionally, the surge current capability reaches a peak of 4 A, accommodating transient conditions without compromising the system's integrity.
