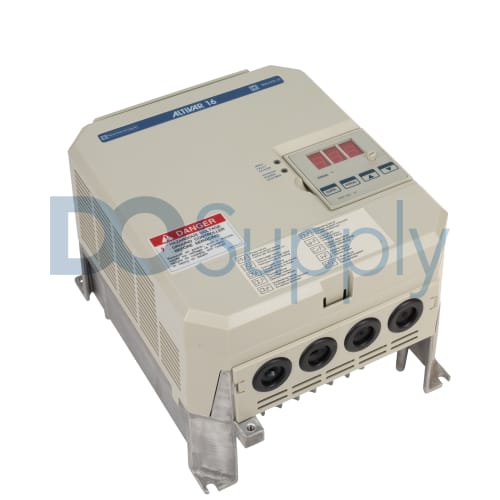

Schneider Electric Altivar ATV16U41N4

Product image is representative; revision or series may vary. Contact us to request a specific version.

ATV16U41N4

|
Need a Specific Revision?

The ATV16U41N4 by Schneider Electric is a versatile drive designed for efficient motor control. With a power rating of 0.75 kW, it operates within a 380-480 V AC voltage range, and supports asynchronous motors. Its current rating is at 1.7 A, suitable for most standard applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for ATV16U41N4

ManufacturerSchneider Electric
Product TypeDrive
Product LineAltivar
Part NumberATV16U41N4
Weight8.56 lbs (3.88 kg)
SeriesATV16
Power Rating0.75 kW
Voltage Rating380-480 V AC
Current Rating1.7 A
Frequency Range50/60 Hz
Control TypeV/F Control
Motor TypeAsynchronous
Input Power SupplyThree-phase
Protection ClassIP20
Ambient Temperature Range-10 to +50°C
Overload Capacity150% for 1 minute
Mounting TypeDIN Rail
Communication ProtocolModbus RTU (optional)
Request a Repair

The Schneider Electric ATV16U41N4 drive serves as an effective solution for controlling asynchronous motors. This unit delivers a power rating of 0.75 kW, allowing it to manage power efficiently across various applications. Rated for an input range of 380 to 480 volts AC, it is capable of handling a current of 1.7 A.

Operating within a frequency span of 50 to 60 Hz, the ATV16U41N4 utilizes V/F control methods to ensure smooth and reliable motor performance. This three-phase drive is designed with a robust IP20 rating, making it suitable for installation where moisture and dust exposure is minimal.

The dimensions of the ATV16U41N4 model are approximately 141 mm in height, 95 mm in width, and 132 mm in depth. Weighing around 1.8 kg, the drive is lightweight enough for simple mounting on DIN rails, enhancing its versatility in control panels.

Additionally, the drive features an overload capacity of up to 150% for one minute, allowing it to tolerate greater demands during specific operational conditions. For communication, an optional Modbus RTU protocol can be integrated, offering flexibility in connectivity for control systems. The ambient temperature range for reliable operation extends from -10 to +50°C, making this drive adept for various industrial environments.
