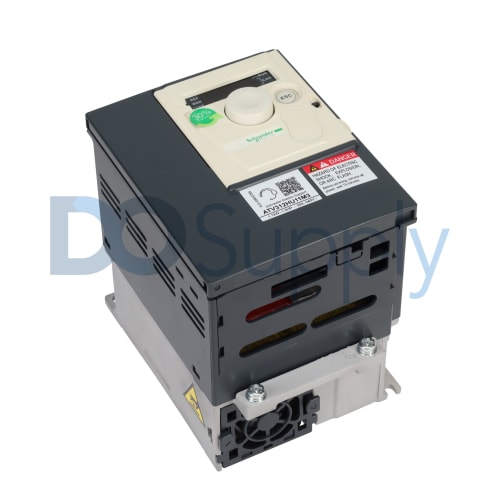

Product image is representative; revision or series may vary. Contact us to request a specific version.
ATV312HU11M3
The ATV312HU11M3 by Schneider Electric is designed as a variable speed drive with a heat sink. It provides 1.1 kW of motor power, operating at a voltage range of 200 to 240 V.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV312HU11M3
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | Altivar |
| Part Number | ATV312HU11M3 |
| EAN | 3606480077548 |
| Weight | 4.00 lbs (1.81 kg) |
| Series | ATV312 |
| Product | Variable Speed Drive |
| Assembly Style | With Heat Sink |
| Motor Power | 1.1 kW |
| Maximum Horsepower Rating | 1.5 Hp |
| Rated Supply Voltage | 200 to 240 V |
| Supply Frequency | 50/60 Hz |
| Number of Phases | 3 |
| Line Current | 8.5 A |
| EMC Filter | Without |
| Apparent Power | 3 kVA |
| Maximum Transient Current | 10.4 A |
| Power Dissipation | 71 W |
| Communication Port Protocol | Modbus, CANopen |
| Degree of Protection | IP20/IP21/IP31/IP40 |
The ATV312HU11M3 is a variable speed drive from Schneider Electric's ATV312 series, embodying a design that includes a heat sink for optimal thermal regulation. Rated at 1.1 kW, it efficiently controls motor operation, making it effective for various industrial applications. This drive supports a maximum horsepower of 1.5 Hp, ensuring robust performance across different motor types.
It operates within a voltage range of 200 to 240 V, compatible with standard electrical systems. The frequency of operation is flexible, supporting both 50 Hz and 60 Hz supply. Designed for three-phase input, the ATV312HU11M3 handles a line current of 8.5 A, showcasing its capacity to manage significant loads.
The apparent power rating stands at 3 kVA, while it also accommodates a transient current peak of 10.4 A. Power dissipation is measured at 71 W. The unit does not come with an EMC filter, but communication is facilitated via the Modbus and CANopen protocols, enabling integration into various automation setups. With a weight of 1.7 kg, the ATV312HU11M3 is relatively lightweight and can be installed easily in applicable environments; its protection rating of IP20, IP21, IP31, or IP40 signifies its versatility and suitability for diverse operational settings.
