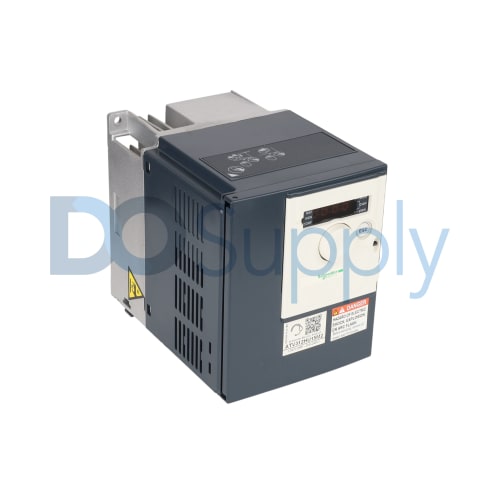

ATV312HU15M2
The ATV312HU15M2 from Schneider Electric is designed as a variable speed drive, providing precise motor control in various applications. It operates with a motor power rating of 1.5 kW, equating to a maximum of 2 HP, with a rated supply voltage of 200 to 240 V, allowing for flexibility in installation.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV312HU15M2
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | Altivar |
| Part Number | ATV312HU15M2 |
| EAN | 3606480077562 |
| Weight | 3.00 lbs (1.36 kg) |
| Series | ATV312 |
| Name | Variable Speed Drive |
| Motor Power | 1.5 kW |
| Maximum Horse Power Rating | 2 HP |
| Rated Supply Voltage | 200 to 240 V ±15% |
| Supply Frequency | 50 to 60 Hz ±5% |
| Phase | Single phase |
| Line Current | 15.8 A at 200 V, Isc = 1 kA; 13.3 A at 240 V |
| Apparent Power | 3.2 kVA |
| Maximum Transient Current | 12 A for 60 seconds |
| Power Dissipation | 90 W at nominal load |
| Speed Range | 1 to 50 |
| IP Degree of Protection | IP20 on upper part without cover plate; IP21 on connection terminals; IP31 on upper part; IP41 on upper part |
| Output Frequency | 0 to 500 Hz |
| Nominal Switching Frequency | 4 kHz |
| Switching Frequency | 2 to 16 kHz adjustable |
Schneider Electric's ATV312HU15M2 is a variable speed drive designed for versatile motor management. With its motor power set at 1.5 kW, this drive can effectively support a maximum power output of 2 HP. It operates within a supply voltage range of 200 to 240 V with a tolerance of ±15%, ensuring compatibility with different electrical systems. Its operational frequency spans from 50 to 60 Hz, also accommodating a tolerance of ±5%.
This single-phase drive draws a line current of 15.8 A at 200 V and 13.3 A at 240 V, with an apparent power of 3.2 kVA. In terms of handling transient currents, the ATV312HU15M2 can withstand up to 12 A for a brief duration of 60 seconds. At nominal load conditions, it exhibits a power dissipation of approximately 90 W, highlighting its efficiency in energy management.
The drive features a speed range extending from 1 to 50, coupled with an output frequency capacity reaching 500 Hz, providing a wide array of operational speeds for varied applications. Its nominal switching frequency is set at 4 kHz, while the adjustable switching frequency allows users to optimize performance within a range of 2 to 16 kHz.
Safety and functionality are further enhanced by its IP degree of protection. The device carries an IP20 rating on the upper part without the cover plate, IP21 on the connection terminals, IP31 on the upper part, and IP41 also on the upper part. This design protects against dust and moisture ingress, making it suitable for various environments.
