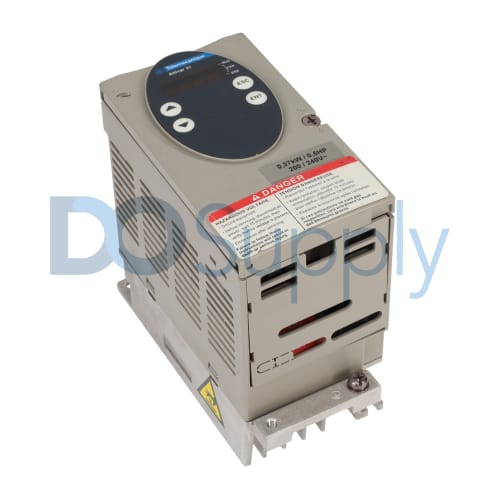

Product image is representative; revision or series may vary. Contact us to request a specific version.
ATV31H037M2
The ATV31H037M2, part of Schneider Electric's Altivar series, is a variable speed drive designed to efficiently control motors. This drive operates within a supply voltage range of 200 to 240 VAC and accommodates 1-phase input.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV31H037M2
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | Altivar |
| Part Number | ATV31H037M2 |
| UPC | 785901545712 |
| Weight | 3.38 lbs (1.53 kg) |
| Name of Module | Variable Speed Drive |
| Supply Voltage | 200 to 240 VAC |
| Number of Phases | 1-phase |
| Supply Frequency | 50 to 60 Hz |
| Output Voltage | 0 to 240 VAC |
| Input Current | 5.3 A max. |
| Output Current | 3.3 A |
| Output Frequency | 5 to 500 Hz |
| Power Output | 0.37 kW (0.5 HP) |
| Short Circuit Current Rating | 1 KAIC |
| Switching Frequency | 4 kHz |
| Number of Digital Inputs | 6 |
| Number of Digital Outputs | 2 |
| Number of Analog Inputs/Outputs | 3 AI, 2 AO |
The Schneider Electric ATV31H037M2 is a variable speed drive optimized for controlling motor operation in various applications. Operating at a supply voltage between 200 and 240 VAC, it employs 1-phase electricity and supports a frequency range of 50 to 60 Hz.
This unit is capable of delivering an output voltage ranging from 0 to 240 VAC. It can handle an input current of up to 5.3 A and offers an output current of 3.3 A, designed to provide reliable motor speed control. The output frequency can be adjusted from 5 Hz to 500 Hz, thus allowing for flexibility in various motor applications.
The drive's power output stands at 0.37 kW, which translates to 0.5 HP, making it suitable for low to moderate power applications. Regarding its robustness, it includes a short circuit current rating of 1 KAIC, aiding in ensuring operational integrity in fault conditions. The switching frequency of 4 kHz allows for efficient motor control with minimal noise.
For connectivity, the ATV31H037M2 includes 6 digital inputs and 2 digital outputs, providing ample options for interfacing with various control systems. Additionally, it is equipped with 3 analog inputs and 2 analog outputs, enhancing its versatility in application scenarios.
