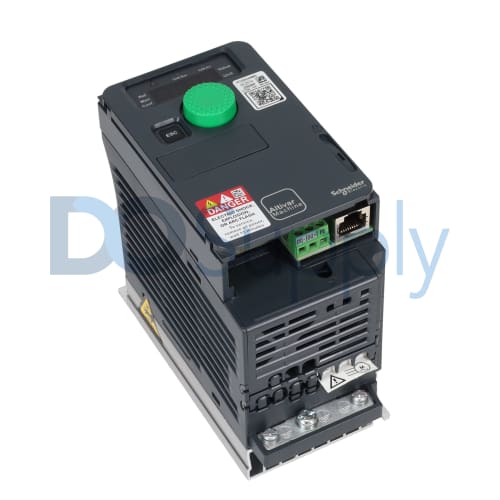

Schneider Electric Altivar ATV320U04M2C

Product image is representative; revision or series may vary. Contact us to request a specific version.

ATV320U04M2C

|
Need a Specific Revision?

The ATV320U04M2C, part of Schneider Electric's ATV320 series, is a versatile variable speed drive engineered for flexibility in complex machine applications. It is suited for wall mounting and operates at a rated supply voltage of 200 to 240 volts, delivering a nominal output current of 3.3 amps.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for ATV320U04M2C

ManufacturerSchneider Electric
Product LineAltivar
Part NumberATV320U04M2C
EAN3606480966521
Weight1.00 lbs (0.45 kg)
SeriesATV320
ProductVariable Speed Drive
Drive ModelStandard
Complex Machine ApplicationsSupported
Mounting TypeWall Mounting
Modbus Serial CommunicationSupported
CANopen CommunicationSupported
Rated Supply Voltage200-240V
Nominal Output Current3.3 Amps
Heavy-Duty Motor Power0.37 kW
EMC FilterClass C2 Filter
IP RatingIP20
Discrete Inputs7 Inputs
Discrete Outputs3 Outputs
Analog Inputs3 Inputs
Analog Outputs1 Output
Request a Repair

The Schneider Electric ATV320U04M2C serves as a reliable variable speed drive suitable for a range of industrial applications. It's rated to function at a supply voltage between 200 and 240V, providing flexibility in electrical configurations. This variable speed drive excels in complex machine settings due to its robust design and adaptability.

Designed specifically for wall mounting, the ATV320U04M2C includes features that support both Modbus and CANopen communication protocols, facilitating integration with existing control systems. The unit is capable of handling a nominal output current of 3.3 amps and a heavy-duty motor power of up to 0.37 kW, making it efficient for various applications.

In terms of electrical protection, the drive incorporates a Class C2 EMC filter, reducing electromagnetic interference. With an IP20 rating, the drive is suitable for indoor use where dust and moisture are controlled. The product features seven discrete inputs and three outputs, as well as three analog inputs and one analog output, ensuring versatile data management and control capabilities within automated systems.
