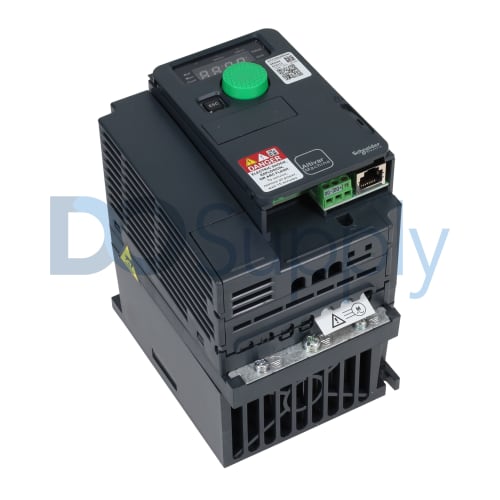

ATV320U06N4C
The ATV320U06N4C from Schneider Electric functions as a variable speed drive, optimized for energy efficiency in motor control. It operates at a power rating of 0.55 kW, or 0.75 horsepower, and supports a voltage range of 380 to 500 VAC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV320U06N4C
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Variable Speed Drive |
| Product Line | Altivar |
| Part Number | ATV320U06N4C |
| Weight | 4.00 lbs (1.81 kg) |
| Series | ATV320 |
| Power Rating | 0.55 kW / 0.75 HP |
| Control Type | Sensorless Vector Control |
| Voltage Range | 380–500 VAC |
| Mounting Type | Panel Mount |
| Overload Capacity | 150% for 60 s |
| Phase | 3-Phase |
| Braking | Integrated Dynamic Braking |
| Communication | Modbus, CANopen |
| Frequency | 50/60 Hz |
| Enclosure Rating | IP20 |
| Certification | CE, UL, EAC |
The Schneider Electric ATV320U06N4C model is engineered as a versatile variable speed drive. This unit is rated for power delivery at 0.55 kW or 0.75 HP, highlighting its ability to manage essential motor control tasks. Designed to handle a voltage input ranging between 380 and 500 VAC, it effectively supports three-phase configurations, ensuring broad application compatibility.
The drive is particularly adept at implementing sensorless vector control, which optimizes performance without the need for additional sensors, thereby reducing cost and complexity. An impressive overload capacity allows for 150% operation for a brief duration of 60 seconds, providing flexibility during startup conditions or in overload situations.
Mounting is simplified due to its panel mount design, making installation seamless in various settings. Integrated dynamic braking enhances the drive's performance by improving control during deceleration, which is vital for high-demand applications.
Moreover, the ATV320U06N4C facilitates communication via Modbus and CANopen protocols, ensuring smooth integration within diverse automation systems. It operates at standard power frequency ratings of 50/60 Hz, making it compliant with global standards.
The drive is housed within an enclosure rated at IP20, suitable for indoor applications with light exposure to environmental factors. It also bears important certifications such as CE, UL, and EAC, demonstrating compliance with international safety and quality standards.
