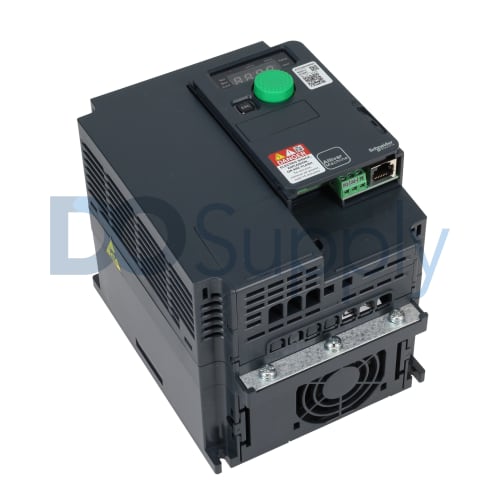

Product image is representative; revision or series may vary. Contact us to request a specific version.
ATV320U30N4C
The ATV320U30N4C variable speed drive from Schneider Electric is engineered with a robust output current rating of 7.1 Amperes and is operational in a three-phase network environment. With a rated output of 3 kilowatts and an ambient temperature range of -10 to 60°C, this device is designed for durability and efficiency.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV320U30N4C
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Variable speed drive |
| Product Line | Altivar |
| Part Number | ATV320U30N4C |
| EAN | 3606480966774 |
| Weight | 5.00 lbs (2.27 kg) |
| Series | ATV320 |
| Rated Output Current | 7.1 Amperes |
| Protection Rating | IP20 |
| Rated Output | 3 kilowatts (heavy duty) |
| Network Phase Type | 3-phase |
| Network Frequency | 50 to 60 Hertz |
| Ambient Operating Temperature | -10 to 60°C (in a non-condensing environment) |
| Mounting Method | Wall mount |
| Number of Inputs/Outputs | 7 discrete inputs, 3 analog inputs, 3 discrete outputs, and 1 analog output |
| Line Current Rating | 8.4 Amperes to 11.1 Amperes |
| Power Dissipation | 93 Watts at 380 Volts AC |
| Power Supply Voltage | 380 to 500 Volts AC |
| Storage Temperature | -25 to 70°C (in a non-condensing environment) |
| Braking Unit | Brake chopper and DC injection brake |
| Protection Type | Thermal protection, short-circuit protection, input phase breaks, overheating, and overcurrent protection |
The Schneider Electric ATV320U30N4C is a variable speed drive that operates effectively in a 3-phase configuration. This model is capable of handling an output current of 7.1 Amperes and delivers up to 3 kilowatts of power suitable for heavy-duty applications. It functions within a frequency range of 50 to 60 Hertz and is designed to withstand an ambient operating temperature of -10 to 60 degrees Celsius in non-condensing conditions.
The unit employs wall mounting for easy installation and can accommodate a variety of connections. Specifically, it includes 7 discrete inputs, 3 analog inputs, 3 discrete outputs, and 1 analog output, providing flexible interfacing capabilities. The line current rating varies between 8.4 Amperes and 11.1 Amperes, making this drive adept at meeting different operational demands.
When operating at 380 Volts AC, the power dissipation measured is 93 Watts, indicating effective power management. The supply voltage falls within 380 to 500 Volts AC, ensuring versatility across applications. For storage, this drive can sustain temperatures from -25 to 70 degrees Celsius without compromising its performance.
Equipped with a braking unit that features both a brake chopper and DC injection braking, this drive enhances stopping control. Protection features are extensive, including safeguards against thermal overload, short circuits, input phase loss, overheating, and overcurrent situations. This comprehensive protection scheme contributes to operational stability and reliability, which are essential in demanding environments.
